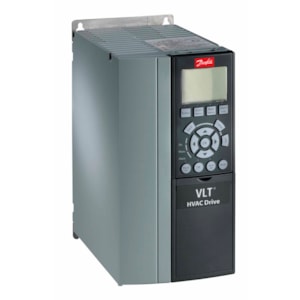

MÁY BIẾN TẦN DANFOSS FC302 7.5KW - C/N 131B0122

Gross weight

7.476 Kilogram

Net weight

6.47 Kilogram

Volume

27.246 Liter

EAN

5702427096172

Product View (Switch)

GLBL

Global (Standard)

Product Group

FC-

VLT^® AutomationDrive FC-

Series

302

302

Power Rating

P7K5

(P7K5) 7.5 KW / 10 HP

Phase

T

Three phase

Mains Voltage

5

380 - 500 VAC

Enclosure

E20

(E20) IP20 / Chassis

RFI Filter

H1

(H1) RFI Class A1/B (C1)

Brake - Safe Stop

B

Brake chopper

LCP

X

No Loc. Cont. Panel

Coating PCB

C

Coated PCB

Mains Option

X

No Mains Option

Adaptation A

X

Standard Cable Entries

Adaptation B

X

No adaptation

Software Release

SXXX

Latest release std. SW.

Software Language Pack

X

Standard Language Pack

A Option

AX

No A Option

B Option

BX

No B Option

C0 Option MCO

CX

No C0 option

C1 Option

X

No C1 option

C Option Software

XX

No software option

D Option

DX

No D option

Frame Size

A3

A3

Typecode Part 1

FC-302P7K5T5E20H1BXC

Typecode Part 2

XXXSXXXXAXBXCXXXXDX

Product Catalog

NO_VIEW

NO VIEW

Power 160% (HO) [KW]

7.5

7.5

Height [mm]

268,0

268,0

Width w/ no C options [mm]

130,0

130,0

Width w/ two C options [mm]

190,0

190,0

Depth [mm]

205,0

205,0

Depth with Option A/B [mm]

220,0

220,0

kVA

11.1

11.1

Power Loss HO [W]

225

225

Power Loss HO [W]

225

225

Continuous Current (HO) [A]

16

16

Intermittent Current (HO) [A]

25.6

25.6

Continuous Current (HO) [A]

14.5

14.5

Intermittent Current (HO) [A]

23.2

23.2

Calculated Gross Weight [kg]

7.476

Calculated Net Weight [kg]

6.47

ECCN EU

Y901

Y901

ECCN US

3A999.a

3A999.a

Vendor

ERR01

Cannot Determine Vendor

Producing plant

ERR01

Cannot Determine Vendor

Modelcode01

FC-302P7K5T5E20H1BXC

Modelcode02

XXXSXXXXAXBXCXXXXDX

Delivering plant

ERR01

ERR01
