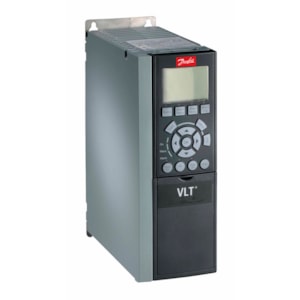

MÁY BIẾN TẦN DANFOSS FC302 4KW - C/N 131B4788

Gross weight

5.606 Kilogram

Net weight

4.76 Kilogram

Volume

21.569 Liter

EAN

5702427315990

Product View (Switch)

GLBL

Global (Standard)

Product Group

FC-

VLT^® AutomationDrive FC-

Series

302

302

Power Rating

P4K0

(P4K0) 4.0 KW / 5.0 HP

Phase

T

Three phase

Mains Voltage

5

380 - 500 VAC

Enclosure

E20

(E20) IP20 / Chassis

RFI Filter

H1

(H1) RFI Class A1/B (C1)

Brake - Safe Stop

B

Brake chopper

LCP

G

Graphical Loc. Cont. Panel

Coating PCB

C

Coated PCB

Mains Option

X

No Mains Option

Adaptation A

X

Standard Cable Entries

Adaptation B

X

No adaptation

Software Release

SXXX

Latest release std. SW.

Software Language Pack

X

Standard Language Pack

A Option

A0

PROFIBUS DP MCA 101

B Option

BX

No B Option

C0 Option MCO

CX

No C0 option

C1 Option

X

No C1 option

C Option Software

XX

No software option

D Option

DX

No D option

Frame Size

A2

A2

Typecode Part 1

FC-302P4K0T5E20H1BGC

Typecode Part 2

XXXSXXXXA0BXCXXXXDX

Product Catalog

NO_VIEW

NO VIEW

Power 160% (HO) [KW]

4

4

Height [mm]

268,0

268,0

Width w/ no C options [mm]

90,0

90,0

Width w/ two C options [mm]

150,0

150,0

Depth [mm]

205,0

205,0

Depth with Option A/B [mm]

220,0

220,0

kVA

6.93

6.93

Power Loss HO [W]

124

124

Power Loss HO [W]

124

124

Continuous Current (HO) [A]

10

10

Intermittent Current (HO) [A]

16

16

Continuous Current (HO) [A]

8.2

8.2

Intermittent Current (HO) [A]

13.1

13.1

Calculated Gross Weight [kg]

5.606

Calculated Net Weight [kg]

4.76

ECCN EU

Y901

Y901

ECCN US

3A999.a

3A999.a

Vendor

ERR01

Cannot Determine Vendor

Producing plant

ERR01

Cannot Determine Vendor

Modelcode01

FC-302P4K0T5E20H1BGC

Modelcode02

XXXSXXXXA0BXCXXXXDX

Delivering plant

ERR01

ERR01
