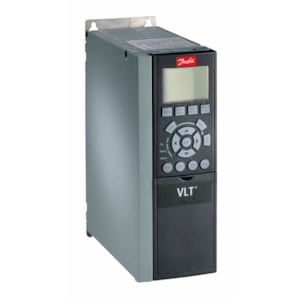

MÁY BIẾN TẦN DANFOSS FC302 1.1KW - C/N 131B0513

Gross weight

5.386 Kilogram

Net weight

4.54 Kilogram

Volume

21.569 Liter

EAN

5702427175570

Product View (Switch)

GLBL

Global (Standard)

Product Group

FC-

VLT^® AutomationDrive FC-

Series

302

302

Power Rating

P1K1

(P1K1) 1.1 KW / 1.5 HP

Phase

T

Three phase

Mains Voltage

5

380 - 500 VAC

Enclosure

E20

(E20) IP20 / Chassis

RFI Filter

H1

(H1) RFI Class A1/B (C1)

Brake - Safe Stop

X

No brake chopper

LCP

X

No Loc. Cont. Panel

Coating PCB

X

Not coated PCB

Mains Option

X

No Mains Option

Adaptation A

X

Standard Cable Entries

Adaptation B

X

No adaptation

Software Release

SXXX

Latest release std. SW.

Software Language Pack

X

Standard Language Pack

A Option

A4

DeviceNet MCA 104

B Option

BX

No B Option

C0 Option MCO

CX

No C0 option

C1 Option

X

No C1 option

C Option Software

XX

No software option

D Option

DX

No D option

Frame Size

A2

A2

Typecode Part 1

FC-302P1K1T5E20H1XXX

Typecode Part 2

XXXSXXXXA4BXCXXXXDX

Product Catalog

NO_VIEW

NO VIEW

Power 160% (HO) [KW]

1.1

1.1

Height [mm]

268,0

268,0

Width w/ no C options [mm]

90,0

90,0

Width w/ two C options [mm]

150,0

150,0

Depth [mm]

205,0

205,0

Depth with Option A/B [mm]

220,0

220,0

kVA

2.08

2.08

Power Loss HO [W]

58

58

Power Loss HO [W]

58

58

Continuous Current (HO) [A]

3

3

Intermittent Current (HO) [A]

4.8

4.8

Continuous Current (HO) [A]

2.7

2.7

Intermittent Current (HO) [A]

4.32

4.32

Calculated Gross Weight [kg]

5.386

Calculated Net Weight [kg]

4.54

ECCN EU

Y901

Y901

ECCN US

3A999.a

3A999.a

Vendor

ERR01

Cannot Determine Vendor

Producing plant

ERR01

Cannot Determine Vendor

Modelcode01

FC-302P1K1T5E20H1XXX

Modelcode02

XXXSXXXXA4BXCXXXXDX

Delivering plant

ERR01

ERR01
