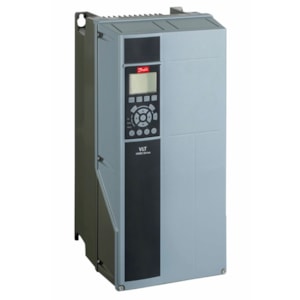

MÁY BIẾN TẦN DANFOSS FC102 4KW - C/N 131B1275

Gross weight

23.41 Kilogram

Net weight

19.79 Kilogram

Volume

105.71 Liter

EAN

5702427158955

Product View (Switch)

GLBL

Global (Standard)

Product Group

FC-

VLT^® HVAC Drive FC-

Series

102

102

Power Rating

P11K

(P11K) 11 KW / 15 HP

Phase

T

Three phase

Mains Voltage

4

380 - 480 VAC

Enclosure

E55

IP55 / Type 12

RFI Filter

H2

RFI Filter

Brake - Safe Stop

X

No brake chopper

LCP

G

Graphical Loc. Cont. Panel

Coating PCB

X

Not coated PCB

Mains Option

X

No Mains Option

Adaptation A

X

Standard Cable Entries

Adaptation B

X

No adaptation

Software Release

SXXX

Latest release std. SW.

Software Language Pack

X

Standard Language Pack

A Option

AX

No A Option

B Option

BX

No B Option

C0 Option MCO

CX

No C0 option

C1 Option

X

No C1 option

C Option Software

XX

No software option

D Option

DX

No D option

Frame Size

B1

B1

Product Catalog

NO_VIEW

NO VIEW

Typecode Part 1

FC-102P11KT4E55H2XGX

Typecode Part 2

XXXSXXXXAXBXCXXXXDX

Power 110% (NO) [KW]

11

11

Height [mm]

494,0

494,0

Width w/ no C options [mm]

243,0

243,0

Depth [mm]

261,0

261,0

Depth with Option A/B [mm]

261,0

261,0

kVA

16.6

16.6

Power Loss NO [W]

278

278

Power Loss NO [W]

278

278

Continuous Current (NO) [A]

24

24

Intermittent Current (NO) [A]

26.4

26.4

Continuous Current (NO) [A]

21

21

Intermittent Current (NO) [A]

23.1

23.1

Calculated Gross Weight [kg]

23.41

Calculated Net Weight [kg]

19.79

ECCN EU

Y901

Y901

ECCN US

3A999.a

3A999.a

Vendor

ERR01

Cannot Determine Vendor

Producing plant

ERR01

Cannot Determine Vendor

Modelcode01

FC-102P11KT4E55H2XGX

Modelcode02

XXXSXXXXAXBXCXXXXDX

Delivering plant

ERR01

ERR01
