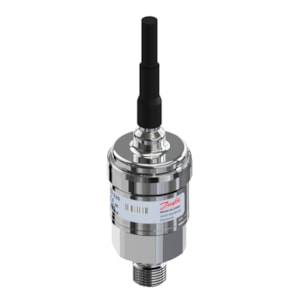

CẢM BIẾN ÁP SUẤT DANFOSS MBS 3350, 0 - 10 bar, 0 - 145 psi - C/N 060G6510

Gross weight

0.356 Kilogram

Net weight

0.306 Kilogram

Volume

1.33 Liter

EAN

5702428954198

Type

MBS 3350

Product group

Sensors

Product Name Description

Pressure transmitter

+ output

Blue

+ supply

Brown

- common

Black

Accuracy, max. [±FS%]

1 %

Accuracy, typical [±FS%]

0.5 %

Adj. zero point and span

No

Ambient temperature range [°C] [max]

125 °C

Ambient temperature range [°C] [min]

-30 °C

Ambient temperature range [°F] [max]

257 °F

Ambient temperature range [°F] [min]

-22 °F

Approval

ATEX; CE; C UL US UL Recognized

Approval comments

ATEX Ex ec IIA T4 Gc

Cable length [in]

79 in

Cable length [m]

2 m

CE mark

Yes

China RoHS compliance

Out of scope

Compensated temp. range [°C] [max]

100 °C

Compensated temp. range [°C] [min]

0 °C

Compensated temp. range [°F] [max]

212 °F

Compensated temp. range [°F] [min]

32 °F

Contains batteries

No

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical conn. comments

Screened Ship

Electrical connection

Cable

Enclosure rating IP

IP67

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Flush diaphragm

No

High Clipping Level

98

In scope of WEEE

Yes

International Article Number

5702428954198

Intrinsically safe

No

Low Clipping level

4

Medium temperature range [°C] [max]

125 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

257 °F

Medium temperature range [°F] [min]

-40 °F

Non-linearity BFSL [±FS%]

0.2 %

Output signal

Ratio metric

Overload pressure max. [bar]

60 bar

Overload pressure max. [psi]

870 psi

Packing format

Multi pack

Pressure connection HEX [mm]

27 mm

Pressure connection size

1/4

Pressure connection standard

DIN 3852-E; ISO 1179-2 (Form E)

Pressure connection type

G

Pressure Male/Female

Male

Pressure range [bar] [max]

10 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

145 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Absolute

Pulse-snubber

Yes

Quantity per packing format

8 pc

Ratiometric of Vsupply [%] [max]

90 %

Ratiometric of Vsupply [%] [min]

10 %

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Response time max. [ms]

4 ms

SCIP dossier no.

16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d

SCIP dossier product name

AKS/MBS

Specification key

MBS 3350-2026-F4GB04-1

Supply voltage [V] DC [max]

5.5 V

Supply voltage [V] DC [min]

4.5 V

UL mark

Yes
