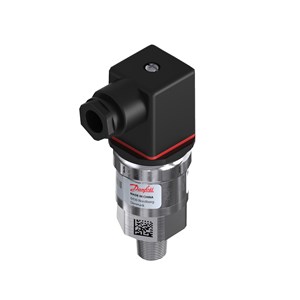

CẢM BIẾN ÁP SUẤT DANFOSS MBS3000 - 060G1143

Gross weight

0.17 Kg

Net weight

0.16 Kg

+ supply

Pin 1

- common

Pin 2

Accuracy, max. +/- FS [%]

1 %

Accuracy, typical +/- FS [%]

0.5 %

Adj. zero point and span

No

Ambient temperature range [°C] [Max]

85 °C

Ambient temperature range [°C] [Min]

-40 °C

Ambient temperature range [°F] [Max]

185 °F

Ambient temperature range [°F] [Min]

-40 °F

Approval

ATEX

Approval comments

ATEX Ex nA IIA T3 Gc

Compensated temp. range [°C] [Max]

80 °C

Compensated temp. range [°C] [Min]

0 °C

Compensated temp. range [°F] [Max]

176 °F

Compensated temp. range [°F] [Min]

32 °F

Electrical conn. Male/Female

Male and Female

Electrical connection

DIN-plug

Electrical connection size

Pg 9

Electrical connection standard

EN 175301-803-A

Enclosure rating IP

IP65

Flush diaphragm

No

Intrinsically safe

No

Medium temperature range [°C] [Max]

85 °C

Medium temperature range [°C] [Min]

-40 °C

Medium temperature range [°F] [Max]

185 °F

Medium temperature range [°F] [Min]

-40 °F

EAN

5702423092116

Non-linearity BFSL ±FS [%]

0.5 %

Output signal

Current

Output signal [mA] [Max]

20 mA

Output signal [mA] [Min]

4 mA

Overload pressure max. [bar]

82 bar

Overload pressure max. [psi]

1200 psi

Packing format

Multi pack

Pressure connection HEX [mm]

27 mm

Pressure connection size

1/4-18

Pressure connection standard

ANSI/ASME B1.20.1

Pressure connection type

NPT

Pressure Male/Female

Male

Pressure range [bar] [Max]

13.79 bar

Pressure range [bar] [Min]

0 bar

Pressure range [psi] [Max]

200 psi

Pressure range [psi] [Min]

0 psi

Pressure unit reference

Gauge (relative)

Product Group

Sensors

Product name

Pressure transmitter

Product type

MBS 3000

Pulse-snubber

No

Quantity per packing format

14 pc

Response time max. [ms]

4 ms

Specification key

MBS 3000-6211-A1AC04-0

Supply voltage [V] DC [Max]

30 V

Supply voltage [V] DC [Min]

10 V
