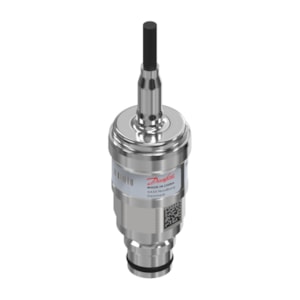

CẢM BIẾN ÁP SUẤT DANFOSS MBS 4010, 0 - 13.8 bar, 0 - 200 psi - C/N 060G6357

Gross weight

0.37 Kilogram

Net weight

0.364 Kilogram

Volume

0.411 Liter

EAN

5702428910095

Type

MBS 4010

Product group

Sensors

Product Name Description

Pressure transmitter

+ supply

Pin A

- common

Pin B

Accuracy, max. [±FS%]

0.8 %

Accuracy, typical [±FS%]

0.3 %

Adj. zero point and span

No

Ambient temperature range [°C] [max]

85 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

185 °F

Ambient temperature range [°F] [min]

-40 °F

Approval

CE; C UL US UL Recognized

CE mark

Yes

China RoHS compliance

Out of scope

Compensated temp. range [°C] [max]

80 °C

Compensated temp. range [°C] [min]

0 °C

Compensated temp. range [°F] [max]

176 °F

Compensated temp. range [°F] [min]

32 °F

Contains batteries

No

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical conn. Male/Female

Male

Electrical connection

Amphenol PT/451-serie

Electrical connection size

6 pin

Electrical connection standard

MIL-C-26482

Enclosure rating IP

IP65

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Flush diaphragm

Yes

High Clipping Level

22.4

In scope of WEEE

Yes

International Article Number

5702428910095

Intrinsically safe

No

Low Clipping level

3.6

Medium temperature range [°C] [max]

85 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

185 °F

Medium temperature range [°F] [min]

-40 °F

Non-linearity BFSL [±FS%]

0.2 %

Output signal

Current

Output signal [mA] [max]

20 mA

Output signal [mA] [min]

4 mA

Overload pressure max. [bar]

27 bar

Packing format

Multi pack

Pressure connection HEX [mm]

41 mm

Pressure connection size

1

Pressure connection standard

ISO 228-1

Pressure connection type

G

Pressure Male/Female

Male

Pressure range [bar] [max]

13.8 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

200 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Sealed gauge

Pulse-snubber

No

Quantity per packing format

14 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Response time max. [ms]

4 ms

SCIP dossier no.

16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d

SCIP dossier product name

AKS/MBS

Specification key

MBS 4010-6231-D8CB11-2

Supply voltage [V] DC [max]

32 V

Supply voltage [V] DC [min]

9 V

UL mark

Yes
