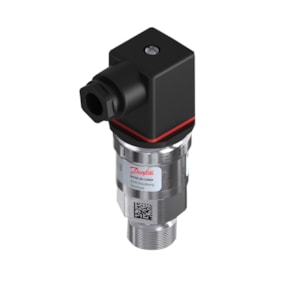

CẢM BIẾN ÁP SUẤT DANFOSS MBS 4000, 0 - 0.3 bar, 0 - 4.35 psi - C/N 060G5766

Gross weight

0.208 Kilogram

Net weight

0.186 Kilogram

Volume

0.408 Liter

EAN

5702423278350

Type

MBS 4000

Product group

Sensors

Product Name Description

Pressure transmitter

+ supply

Pin 1

- common

Pin 2

Accuracy, max. [±FS%]

0.9 %

Accuracy, typical [±FS%]

0.2 %

Adj. zero point and span

No

Ambient temperature range [°C] [max]

85 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

185 °F

Ambient temperature range [°F] [min]

-40 °F

Approval

ATEX; CE ; C UL US UL Recognized

Approval comments

ATEX Ex ec IIA T4 Gc

CE evaluated

Yes

China RoHS compliance

Out of scope

Compensated temp. range [°C] [max]

80 °C

Compensated temp. range [°C] [min]

0 °C

Compensated temp. range [°F] [max]

176 °F

Compensated temp. range [°F] [min]

32 °F

Contains batteries

No

Electrical conn. Male/Female

Male and Female

Electrical connection

Angular connector

Electrical connection size

Pg 9

Electrical connection standard

EN 175301-803-A

Enclosure rating IP

IP65

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Flush diaphragm

No

High Clipping Level

22.4

International Article Number

5702423278350

Intrinsically safe

No

Low Clipping level

3.6

Medium temperature range [°C] [max]

85 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

185 °F

Medium temperature range [°F] [min]

-40 °F

Non-linearity BFSL [±FS%]

0.2 %

Output signal

Current

Output signal [mA] [max]

20 mA

Output signal [mA] [min]

4 mA

Overload pressure max. [bar]

1.8 bar

Packing format

Multi pack

Pressure connection HEX [mm]

27 mm

Pressure connection size

1/2

Pressure connection standard

EN 837

Pressure connection type

G

Pressure Male/Female

Male

Pressure range [bar] [max]

0.3 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

4.35 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Gauge (relative)

Pulse-snubber

No

Quantity per packing format

14 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Response time max. [ms]

4 ms

SCIP dossier no.

16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d

SCIP dossier product name

AKS/MBS

Specification key

MBS 4000-DE11-A1AB08-0

Supply voltage [V] DC [max]

32 V

Supply voltage [V] DC [min]

9 V

UL mark

Yes
