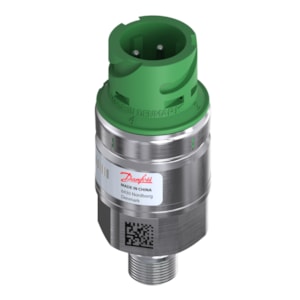

CẢM BIẾN ÁP SUẤT DANFOSS MBS 3250, 0 - 250 bar, 0 - 3625 psi - C/N 060G6851

Gross weight

0.145 Kilogram

Net weight

0.129 Kilogram

Volume

0.251 Liter

EAN

5702424162641

Type

MBS 3250

Product group

Sensors

Product Name Description

Pressure transmitter

+ supply

Pin 1

- common

Pin 2

Accuracy, max. [±FS%]

1 %

Accuracy, typical [±FS%]

0.5 %

Adj. zero point and span

No

Ambient temperature range [°C] [max]

100 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

212 °F

Ambient temperature range [°F] [min]

-40 °F

Approval

CE; C UL US UL Recognized

Autofrettage Pressure

1600 bar

CE evaluated

Yes

China RoHS compliance

Out of scope

Compensated temp. range [°C] [max]

100 °C

Compensated temp. range [°C] [min]

0 °C

Compensated temp. range [°F] [max]

212 °F

Compensated temp. range [°F] [min]

32 °F

Contains batteries

No

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical conn. comments

A3-3.1-AU Ø31- Green

Electrical conn. Male/Female

Male

Electrical connection

Bayonet

Electrical connection size

3 pin

Electrical connection standard

ISO 15170

Enclosure rating IP

IP65

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Flush diaphragm

No

High Clipping Level

22.4

In scope of WEEE

Yes

International Article Number

5702424162641

Intrinsically safe

No

Low Clipping level

3.6

Medium temperature range [°C] [max]

125 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

257 °F

Medium temperature range [°F] [min]

-40 °F

Non-linearity BFSL [±FS%]

0.2 %

Output signal

Current

Output signal [mA] [max]

20 mA

Output signal [mA] [min]

4 mA

Overload pressure max. [bar]

1500 bar

Packing format

Multi pack

Pressure connection HEX [mm]

27 mm

Pressure connection size

1/4

Pressure connection standard

DIN 3852-E

Pressure connection type

G

Pressure Male/Female

Male

Pressure range [bar] [max]

250 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

3625 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Sealed gauge

Pulse-snubber

Yes

Quantity per packing format

20 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Response time max. [ms]

4 ms

SCIP dossier no.

16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d

SCIP dossier product name

AKS/MBS

Specification key

MBS 3250-3431-G4GB04-1

Supply voltage [V] DC [max]

32 V

Supply voltage [V] DC [min]

9 V

UL mark

Yes
