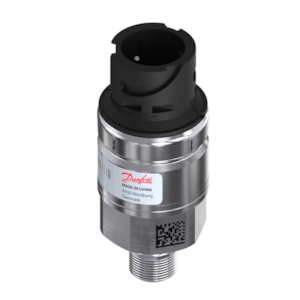

CẢM BIẾN ÁP SUẤT DANFOSS MBS 3250, 0 - 16 bar, 0 - 232 psi - C/N 060G7803

Gross weight

0.144 Kilogram

Net weight

0.127 Kilogram

Volume

0.253 Liter

EAN

5715255149699

Type

MBS 3250

Product group

Sensors

Product Name Description

Pressure transmitter

+ output

Pin 3

+ supply

Pin 1

- common

Pin 2

Ambient temperature range [°C] [max]

125 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

257 °F

Ambient temperature range [°F] [min]

-40 °F

Approval

ATEX; C UL US UL Recognized; CE

Approval comments

ATEX Ex ec IIA T4 Gc

CE evaluated

Yes

China RoHS compliance

Out of scope

Compensated temp. range [°C] [max]

100 °C

Compensated temp. range [°C] [min]

0 °C

Compensated temp. range [°F] [max]

212 °F

Compensated temp. range [°F] [min]

32 °F

Contains batteries

No

Electrical conn. comments

A1-3.1-AU Ø31- Black

Electrical conn. Male/Female

Male

Electrical connection

Bayonet

Electrical connection size

3 pin

Electrical connection standard

ISO 15170

Enclosure rating IP

IP67

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Flush diaphragm

No

High Clipping Level

97

Identical product

060G7803

International Article Number

5715255149699

Intrinsically safe

No

Low Clipping level

3

Medium temperature range [°C] [max]

125 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

257 °F

Medium temperature range [°F] [min]

-40 °F

Output signal

Ratio metric

Overload pressure max. [bar]

96 bar

Overload pressure max. [psi]

1392 psi

Packing format

Multi pack

Pressure connection HEX [mm]

27 mm

Pressure connection size

1/4-A

Pressure connection standard

DIN 3852-E

Pressure connection type

G

Pressure Male/Female

Male

Pressure range [bar] [max]

16 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

232 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Absolute

Pulse-snubber

Yes

Quantity per packing format

20 pc

Ratiometric of Vsupply [%] [max]

90 %

Ratiometric of Vsupply [%] [min]

10 %

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Response time max. [ms]

4 ms

SCIP dossier no.

16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d

SCIP dossier product name

AKS/MBS

Specification key

MBS 3250-2226-E8GB04-1

Supply voltage [V] DC [max]

5.25 V

Supply voltage [V] DC [min]

4.75 V

UL mark

Yes
