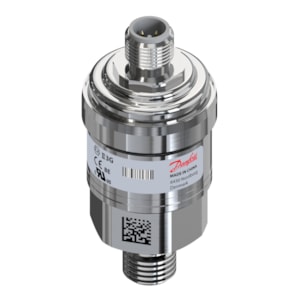

CẢM BIẾN ÁP SUẤT DANFOSS MBS 3050, 0 - 6 bar, 0 - 87 psi - C/N 060G7666

Gross weight

0.153 Kilogram

Net weight

0.136 Kilogram

Volume

0.253 Liter

EAN

5715162461402

Type

MBS 3050

Product group

Sensors

Product Name Description

Pressure transmitter

+ supply

Pin 1

- supply

Pin 2

Accuracy, max. [±FS%]

1 %

Accuracy, typical [±FS%]

0.5 %

Adj. zero point and span

No

Ambient temperature range [°C] [max]

85 °C

Ambient temperature range [°C] [min]

-25 °C

Ambient temperature range [°F] [max]

185 °F

Ambient temperature range [°F] [min]

-13 °F

Approval

CE; C UL US UL Recognized

CE evaluated

Yes

China RoHS compliance

Out of scope

Compensated temp. range [°C] [max]

80 °C

Compensated temp. range [°C] [min]

0 °C

Compensated temp. range [°F] [max]

176 °F

Compensated temp. range [°F] [min]

32 °F

Contains batteries

No

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical conn. Male/Female

Male

Electrical connection

M12 x 1

Electrical connection size

4 pin

Electrical connection standard

IEC 61076-2-101

Enclosure rating IP

IP67

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Flush diaphragm

No

High Clipping Level

22.4

In scope of WEEE

Yes

International Article Number

5715162461402

Intrinsically safe

No

Low Clipping level

3.6

Medium temperature range [°C] [max]

85 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

185 °F

Medium temperature range [°F] [min]

-40 °F

Non-linearity BFSL [±FS%]

0.5 %

Output signal

Current

Output signal [mA] [max]

20 mA

Output signal [mA] [min]

4 mA

Overload pressure max. [bar]

36 bar

Packing format

Multi pack

Pressure connection HEX [mm]

27 mm

Pressure connection size

1/4

Pressure connection standard

DIN 3852-E

Pressure connection type

G

Pressure Male/Female

Male

Pressure range [bar] [max]

6 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

87 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Sealed gauge

Pulse-snubber

Yes

Quantity per packing format

20 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Response time max. [ms]

4 ms

SCIP dossier no.

16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d

SCIP dossier product name

AKS/MBS

Specification key

MBS 3050-1831-C1GB04-2

Supply voltage [V] DC [max]

32 V

Supply voltage [V] DC [min]

9 V

UL evaluated

Yes
