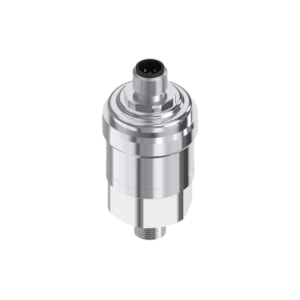

CẢM BIẾN ÁP SUẤT DANFOSS MBS 3050, 0 - 50 bar, 0 - 725 psi - C/N 060G5549

Gross weight

0.152 Kilogram

Net weight

0.139 Kilogram

Volume

0.255 Liter

EAN

5702423237876

Type

MBS 3050

Product group

Sensors

Product Name Description

Pressure transmitter

+ output

Pin 2

+ supply

Pin 1

- common

Pin 3

Accuracy, max. [±FS%]

1 %

Accuracy, typical [±FS%]

0.5 %

Adj. zero point and span

No

Ambient temperature range [°C] [max]

85 °C

Ambient temperature range [°C] [min]

-25 °C

Ambient temperature range [°F] [max]

185 °F

Ambient temperature range [°F] [min]

-13 °F

Approval

CE; C UL US UL Recognized

CE evaluated

Yes

China RoHS compliance

Out of scope

Compensated temp. range [°C] [max]

80 °C

Compensated temp. range [°C] [min]

0 °C

Compensated temp. range [°F] [max]

176 °F

Compensated temp. range [°F] [min]

32 °F

Contains batteries

No

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical conn. Male/Female

Male

Electrical connection

M12 x 1

Electrical connection size

4 pin

Electrical connection standard

IEC 61076-2-101

Enclosure rating IP

IP67

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Flush diaphragm

No

High Clipping Level

5.1

In scope of WEEE

Yes

International Article Number

5702423237876

Intrinsically safe

No

Low Clipping level

0.1

Medium temperature range [°C] [max]

85 °C

Medium temperature range [°C] [min]

-20 °C

Medium temperature range [°F] [max]

185 °F

Medium temperature range [°F] [min]

-4 °F

Non-linearity BFSL [±FS%]

0.5 %

Output signal

Voltage

Output signal [V] [max]

4.5 V

Output signal [V] [min]

0.5 V

Overload pressure max. [bar]

300 bar

Overload pressure max. [psi]

4351 psi

Packing format

Multi pack

Pressure connection HEX [mm]

27 mm

Pressure connection size

9/16-18

Pressure connection standard

ISO 11926

Pressure connection type

UNF

Pressure Male/Female

Male

Pressure range [bar] [max]

50 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

725 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Sealed gauge

Pulse-snubber

Yes

Quantity per packing format

20 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Response time max. [ms]

4 ms

SCIP dossier no.

16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d

SCIP dossier product name

AKS/MBS

Specification key

MBS 3050-273C-E3BD10-3

Supply voltage [V] DC [max]

32 V

Supply voltage [V] DC [min]

9 V

UL evaluated

Yes
