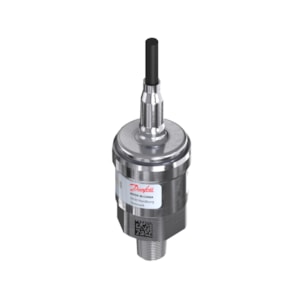

CẢM BIẾN ÁP SUẤT DANFOSS MBS 3050, 0 - 10.3 bar, 0 - 150 psi - C/N 060G3957

Gross weight

0.268 Kilogram

Net weight

0.232 Kilogram

Volume

1.29 Liter

EAN

5702423225705

Type

MBS 3050

Product group

Sensors

Product Name Description

Pressure transmitter

+ output

White

+ supply

Red

- common

Black

Accuracy, max. [±FS%]

1 %

Accuracy, typical [±FS%]

0.5 %

Adj. zero point and span

No

Ambient temperature range [°C] [max]

85 °C

Ambient temperature range [°C] [min]

-30 °C

Ambient temperature range [°F] [max]

185 °F

Ambient temperature range [°F] [min]

-22 °F

Approval

ATEX; CE; C UL US UL Recognized

Approval comments

ATEX Ex ec IIA T4 Gc

Cable length [in]

79 in

Cable length [m]

2 m

CE evaluated

Yes

China RoHS compliance

Out of scope

Compensated temp. range [°C] [max]

80 °C

Compensated temp. range [°C] [min]

0 °C

Compensated temp. range [°F] [max]

176 °F

Compensated temp. range [°F] [min]

32 °F

Contains batteries

No

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical conn. comments

Screened

Electrical connection

Cable

Enclosure rating IP

IP67

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Flush diaphragm

No

High Clipping Level

6.25

In scope of WEEE

Yes

International Article Number

5702423225705

Intrinsically safe

No

Low Clipping level

0.1

Medium temperature range [°C] [max]

85 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

185 °F

Medium temperature range [°F] [min]

-40 °F

Non-linearity BFSL [±FS%]

0.5 %

Output signal

Voltage

Output signal [V] [max]

5.5 V

Output signal [V] [min]

0.5 V

Overload pressure max. [psi]

870 psi

Packing format

Multi pack

Pressure connection HEX [mm]

27 mm

Pressure connection size

1/4-18

Pressure connection standard

ANSI/ASME B1.20.1

Pressure connection type

NPT

Pressure Male/Female

Male

Pressure range [bar] [max]

10.3 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

150 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Gauge (relative)

Pulse-snubber

Yes

Quantity per packing format

8 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Response time max. [ms]

4 ms

SCIP dossier no.

16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d

SCIP dossier product name

AKS/MBS

Specification key

MBS 3050-601D-A3AC04-0

Supply voltage [V] DC [max]

32 V

Supply voltage [V] DC [min]

9 V

UL evaluated

Yes
