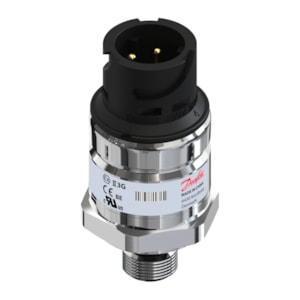

CẢM BIẾN ÁP SUẤT DANFOSS MBS 3000, 0 - 25.86 bar, 0 - 375 psi - C/N 060G7751

Gross weight

0.153 Kilogram

Net weight

0.116 Kilogram

Volume

0.253 Liter

EAN

5715162979723

Type

MBS 3000

Product group

Sensors

Product Name Description

Pressure transmitter

+ output

Pin 3

+ supply

Pin 1

- common

Pin 2

Accuracy, max. [±FS%]

1 %

Accuracy, typical [±FS%]

0.5 %

Ambient temperature range [°C] [max]

85 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

185 °F

Ambient temperature range [°F] [min]

-40 °F

CE evaluated

Yes

China RoHS compliance

Out of scope

Comments

TEST

Compensated temp. range [°C] [max]

80 °C

Compensated temp. range [°C] [min]

0 °C

Compensated temp. range [°F] [max]

176 °F

Compensated temp. range [°F] [min]

32 °F

Contains batteries

No

Electrical conn. comments

A1-3.1-AU Ø31- Black

Electrical conn. Male/Female

Male

Electrical connection

Bayonet

Electrical connection size

3 pin

Electrical connection standard

DIN 72585

Enclosure rating IP

IP67

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Flush diaphragm

No

High Clipping Level

99

In scope of WEEE

Yes

International Article Number

5715162979723

Intrinsically safe

No

Low Clipping level

4

Medium temperature range [°C] [max]

85 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

185 °F

Medium temperature range [°F] [min]

-40 °F

Non-linearity BFSL [±FS%]

0.2 %

Output signal

Ratio metric

Overload pressure max. [bar]

155.1 bar

Overload pressure max. [psi]

2250 psi

Packing format

Multi pack

Pressure connection HEX [mm]

32 mm

Pressure connection notes

Special low pressure

Pressure connection size

14 x 1.5

Pressure connection standard

ISO 6149-2

Pressure connection type

M

Pressure Male/Female

Male

Pressure range [bar] [max]

25.86 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

375 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Absolute

Pulse-snubber

No

Quantity per packing format

20 pc

Ratiometric of Vsupply [%] [max]

90 %

Ratiometric of Vsupply [%] [min]

10 %

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Response time max. [ms]

4 ms

SCIP dossier no.

16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d

SCIP dossier product name

AKS/MBS

Specification key

MBS 3000-6526-E8CD14-3

Supply voltage [V] DC [max]

5.5 V

Supply voltage [V] DC [min]

4.5 V

UL evaluated

Yes
