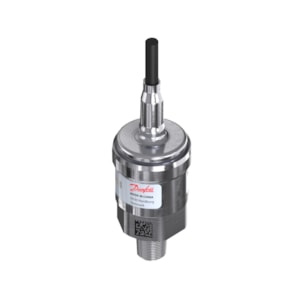

CẢM BIẾN ÁP SUẤT DANFOSS MBS 3000, -1 - 0 bar, -14.5 - 0 psi - C/N 060G7738

Gross weight

0.271 Kilogram

Net weight

0.231 Kilogram

Volume

1.226 Liter

EAN

5715162907702

Type

MBS 3000

Product group

Sensors

Product Name Description

Pressure transmitter

+ supply

Brown

- supply

Black

Accuracy, max. [±FS%]

1 %

Accuracy, typical [±FS%]

0.5 %

Ambient temperature range [°C] [max]

85 °C

Ambient temperature range [°C] [min]

-30 °C

Ambient temperature range [°F] [max]

185 °F

Ambient temperature range [°F] [min]

-22 °F

Approval comments

ATEX Ex ec IIA T4 Gc

Cable length [in]

79 in

Cable length [m]

2 m

CE evaluated

Yes

China RoHS compliance

Out of scope

Compensated temp. range [°C] [max]

80 °C

Compensated temp. range [°C] [min]

0 °C

Compensated temp. range [°F] [max]

176 °F

Compensated temp. range [°F] [min]

32 °F

Contains batteries

No

Electrical conn. comments

Screened

Electrical connection

Cable

Enclosure rating IP

IP67

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Flush diaphragm

No

High Clipping Level

3.6

In scope of WEEE

Yes

International Article Number

5715162907702

Intrinsically safe

No

Low Clipping level

22.4

Medium temperature range [°C] [max]

85 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

185 °F

Medium temperature range [°F] [min]

-40 °F

Non-linearity BFSL [±FS%]

0.5 %

Output signal

Current

Output signal [mA] [max]

20 mA

Output signal [mA] [min]

4 mA

Overload pressure max. [bar]

6 bar

Overload pressure max. [psi]

87 psi

Packing format

Multi pack

Pressure connection HEX [mm]

27 mm

Pressure connection size

1/8-27

Pressure connection standard

ANSI/ASME B1.20.1

Pressure connection type

NPT

Pressure Male/Female

Male

Pressure range [bar] [max]

0 bar

Pressure range [bar] [min]

-1 bar

Pressure range [psi] [max]

0 psi

Pressure range [psi] [min]

-14.5 psi

Pressure reference

Sealed gauge

Pulse-snubber

No

Quantity per packing format

8 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Response time max. [ms]

4 ms

SCIP dossier no.

16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d

SCIP dossier product name

AKS/MBS

Specification key

MBS 3000-833X-A3AC02-0

Supply voltage [V] DC [max]

32 V

Supply voltage [V] DC [min]

9 V

UL evaluated

Yes
