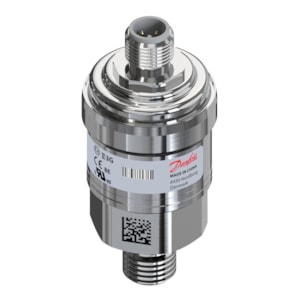

CẢM BIẾN ÁP SUẤT DANFOSS MBS 3000, 0 - 10 bar, 0 - 145 psi - C/N 060G7723

Gross weight

0.153 Kilogram

Net weight

0.135 Kilogram

Volume

0.271 Liter

EAN

5715162788196

Type

MBS 3000

Product group

Sensors

Product Name Description

Pressure transmitter

+ supply

Pin 1

- supply

Pin 4

Accuracy, max. [±FS%]

1 %

Accuracy, typical [±FS%]

0.5 %

Ambient temperature range [°C] [max]

85 °C

Ambient temperature range [°C] [min]

-25 °C

Ambient temperature range [°F] [max]

185 °F

Ambient temperature range [°F] [min]

-13 °F

CE evaluated

Yes

China RoHS compliance

Out of scope

Compensated temp. range [°C] [max]

80 °C

Compensated temp. range [°C] [min]

0 °C

Compensated temp. range [°F] [max]

176 °F

Compensated temp. range [°F] [min]

32 °F

Contains batteries

No

Electrical conn. Male/Female

Male

Electrical connection

M12 x 1

Electrical connection size

4 pin

Electrical connection standard

IEC 61076-2-101

Enclosure rating IP

IP67

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Flush diaphragm

No

High Clipping Level

22.4

In scope of WEEE

Yes

International Article Number

5715162788196

Intrinsically safe

No

Low Clipping level

3.6

Medium temperature range [°C] [max]

85 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

185 °F

Medium temperature range [°F] [min]

-40 °F

Non-linearity BFSL [±FS%]

0.5 %

Output signal

Current

Output signal [mA] [max]

20 mA

Output signal [mA] [min]

4 mA

Overload pressure max. [bar]

60 bar

Overload pressure max. [psi]

870 psi

Packing format

Multi pack

Pressure connection HEX [mm]

27 mm

Pressure connection size

1/4

Pressure connection standard

DIN 3852-E; ISO 1179-2 (Form E)

Pressure connection type

G

Pressure Male/Female

Male

Pressure range [bar] [max]

10 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

145 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Absolute

Pulse-snubber

No

Quantity per packing format

20 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Response time max. [ms]

4 ms

SCIP dossier no.

16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d

SCIP dossier product name

AKS/MBS

Specification key

MBS 3000-2021-C1GB04-2

Supply voltage [V] DC [max]

32 V

Supply voltage [V] DC [min]

9 V

UL evaluated

Yes
