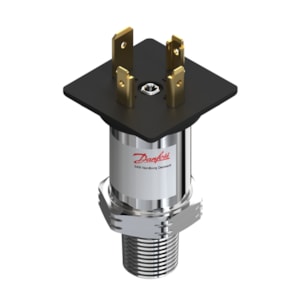

CẢM BIẾN ÁP SUẤT DANFOSS MBS 1650, 0 - 100 bar, 0 - 1450.38 psi - C/N 063G2916

Gross weight

74 Gram

Net weight

64 Gram

Volume

0.09 Liter

EAN

5715162731482

Type

MBS 1650

Product group

Sensors

Product Name Description

Pressure transmitter

+ output

Pin 3

+ supply

Pin 1

- common

Pin 2

Accuracy, typical [±FS%]

0.5 %

Ambient temperature range [°C] [max]

125 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

257 °F

Ambient temperature range [°F] [min]

-40 °F

Approval

CE; C UL US UL Recognized

Burst pressure [bar]

2000 bar

Burst pressure [psig]

29008 psig

CE evaluated

Yes

China RoHS compliance

Out of scope

Compensated temp. range [°C] [max]

125 °C

Compensated temp. range [°C] [min]

-40 °C

Compensated temp. range [°F] [max]

257 °F

Compensated temp. range [°F] [min]

-40 °F

Contains batteries

No

Electrical conn. Male/Female

Male

Electrical connection

Angular connector

Electrical connection size

4 pin

Electrical connection standard

EN 175301-803-A

Enclosure rating IP

IP67

EU RoHS compliance

Yes

EU RoHS exemption clause

No

Medium temperature range [°C] [max]

125 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

257 °F

Medium temperature range [°F] [min]

-40 °F

Output signal

Voltage

Output signal [V] [max]

10 V

Output signal [V] [min]

0 V

Overload pressure max. [bar]

300 bar

Overload pressure max. [psig]

4351 psig

Packing format

Multi pack

Pin surface material

Sn

Pressure connection HEX [mm]

22 mm

Pressure connection size

1/4-19

Pressure connection standard

JIS B0203 / ISO 7-1

Pressure connection type

R

Pressure Male/Female

Male

Pressure range [bar] [max]

100 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

1450.38 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Gauge (relative)

Pulse-snubber

Yes

Quantity per packing format

48 pc

REACH Candidate List substances

No

Response time max. [ms]

1 ms

Specification key

MBS 1650-3015-A0PT04

Supply voltage [V] DC [max]

32 V

Supply voltage [V] DC [min]

12 V

UL evaluated

Yes
