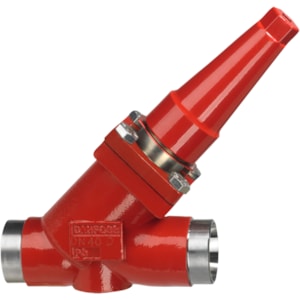

VAN CHẶN THẲNG DANFOSS SVA-S 25 A - nắp chụp (phi 34) - C/N 148B5431

Gross weight

4.668 Kilogram

Net weight

3.388 Kilogram

Volume

7.524 Liter

EAN

5702428466806

Type

SVA-S 25

Product group

Shut-off and regulating valves

Product Name Description

Shut-off valve

Approval

EAC; LLC CDC TYSK

Body material

Steel

Brand

SVL Flexline

CE evaluated

Yes

China RoHS compliance

Yes

China RoHS exemption clause

No

Colour Paint

Reddish brown

Connection material

Steel

Connection standard

ASME B 36.10M SCHEDULE 80

Contains batteries

No

Cv value [gal/min]

20.18 gal/min

Direction

Straightway

Equipment

Cap

EU RoHS compliance

Yes

EU RoHS exemption clause

No

Flow direction

Bi-flow

Flow direction indicator

Embossed 1-way arrow

Fluid Group

1

Inlet connection size [in]

1 in

Inlet connection size [mm]

25 mm

Inlet connection type

Butt weld

Kv value [m³/h]

17.4 m³/h

Max. Working Pressure [bar]

52 bar

Max. Working Pressure [psig]

754 psig

Neck

Standard

Outlet connection size [in]

1 in

Outlet connection size [mm]

25 mm

Outlet connection type

Butt weld

Packing format

Single pack

Parts Program name

SVA-S / SVA-L

PED category

Art. 3, par. 3

Product accessories

SVL Flexline accessories

Product description

Stop valve

Quantity per packing format

1 pc

REACH Candidate List substances

No

Refrigerants

R113
R114
R1234yf
R1234ze(E)
R125
R1270
R1336mzz(Z)
R134a
R152a
R22
R227ea
R23
R236fa
R290
R32
R401A
R402A
R402B
R404A
R407A
R407B
R407C
R407F
R407H
R408A
R409A
R410A
R417A
R421A
R422A
R422B
R422D
R427A
R438A
R444B
R447A
R448A
R449A
R449B
R450A
R452A
R454B
R455A
R502
R503
R513A
R600
R600a
R717
R744
RE170
R507A
R1150
R170
R245fa
R413A
R442A
R447B
R452B
R454A
R454C
R463A
R512A
R513B
R515A
R515B
R516A
R508B

Serviceable

SVL Flexline spare parts

Temperature range [°C] [max]

150 °C

Temperature range [°C] [min]

-60 °C

Temperature range [°F] [max]

302 °F

Temperature range [°F] [min]

-76 °F

Valve version

Standard version
