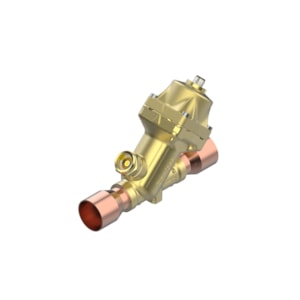

VAN TIẾT LƯU ĐIỆN TỪ DANFOSS ETS 250L - C/N 034G3606

Gross weight

2.031 Kilogram

Net weight

1.911 Kilogram

Volume

6.248 Liter

EAN

5715162282977

Type

ETS 250L

Product group

Expansion valves

Product Name Description

Electric expansion valve

Ambient temperature range [°C] [max]

70 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

158 °F

Ambient temperature range [°F] [min]

-40 °F

Approval

CE; CMIM; CRN; EAC; LLC CDC TYSK; UA; UKCA; UL Recognized

Approval file name

MH7648

Approval file name

MH7648

Balanced port [Yes/No]

Yes

Body material

Brass

CE evaluated

Yes

China RoHS compliance

Yes with exemptions

Compatible Danfoss controllers

AK-XM 208C; EKE; EKF; MCX

Connection material

Copper

Contains batteries

No

Cv value [gal/min]

16.1 gal/min

Direction

Straightway

Electrical conn. Male/Female

Male

Electrical connection

M12

Electrical connection size

4 pin

Enclosure rating IP

IP67

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Flow characteristic

S-shape

Flow direction

Bi-flow

Flow direction indicator

Arrow embossed

Fluid Group

2

Full travel time CurrDrive [s]

12.7 s

Full travel time VoltDrive [s]

25.4 s

Inlet connection type

Solder ODF

Inlet size [in]

1 5/8 in

Kv value [m³/h]

13.9 m³/h

Lubricants compatibility

MO; POE; AB; PAG; PAO; PVE

Manual operation option

AST-G service driver

Max allowed duty cycle [%]

100 %

Max tot PowerCons CurrDrive[W]

6.5 W

Max tot PowerCons VoltDrive[W]

5.5 W

Max. Working Pressure [bar]

37 bar

Max. Working Pressure [psig]

536 psig

MaxOPD [bar]

26 bar

MaxOPD [psi]

377 psi

MaxOPD reverse CurrDrive [bar]

17 bar

MaxOPD reverse CurrDrive [psi]

247 psi

MaxOPD reverse VoltDrive [bar]

12 bar

MaxOPD reverse VoltDrive [psi]

174 psi

Motor type

Bi-polar

MWP [bar] CRN

32 bar

MWP [psig] CRN

463 psig

Operating current max. [A]

0.5 A

Outlet connection type

Solder ODF

Outlet size [in]

1 5/8 in

Packing format

Single pack

PED category

I

Phase current (peak) [mA]

283 mA

Phase current (RMS) [mA]

200 mA

Phase inductance [µH]

85000 μH

Product accessories

Stepper valve accessories

Quantity per packing format

1 pc

Rated cap. cond. note

Full stroke open, normal flow

Rated cap. conditions [IMP]

tcond=90 °F; tevap=40 °F; tliq=82 °F

Rated cap. conditions [SI]

tcond=32 °C; tevap=5 °C; tliq=28 °C

Rated cap. R404A/R507A [kW]

964 kW

Rated cap. R404A/R507A [TR]

295 TR

Rated capacity R134a [kW]

724 kW

Rated capacity R134a [TR]

206 TR

Rated capacity R407C [kW]

1495 kW

Rated capacity R407C [TR]

425 TR

Rated capacity R513A [kW]

925 kW

Rated capacity R513A [TR]

263 TR

REACH Candidate List substances

Lead (CAS no. 7439-92-1); Cobalt dichloride (CAS no. 7646-79-9)

Refrigerant temperature [ºC] [max]

70 °C

Refrigerant temperature [ºC] [min]

-40 °C

Refrigerant temperature [ºF] [max]

158 °F

Refrigerant temperature [ºF] [min]

-40 °F

Refrigerants

R1234ze(E)
R134a
R22
R404A
R407A
R407C
R407F
R407H
R410A
R417A
R422A
R422B
R422D
R438A
R442A
R448A
R449A
R449B
R450A
R452A
R463A
R507A
R513A
R513B
R515A
R515B
R1234yf

Resistance [kOhm]

0.1 kOhm

SCIP dossier no.

c81a3c50-9710-4373-be75-2652b16aea76

SCIP dossier product name

ETS 175L-550L with sight glass

Serviceable

Stepper valve spare parts

Sightglass

Yes

Step mode

2-phase full step

Total steps

3810 (full steps)

UL approved refrigerants

R1234ze(E)
R134a
R22
R404A
R407A
R407C
R407F
R407H
R410A
R417A
R422A
R422B
R422D
R438A
R442A
R448A
R449A
R449B
R450A
R452A
R463A
R507A
R513A
R513B
R515A
R515B
R1234yf

UL evaluated

Yes

Voltage [V] DC

12 V
