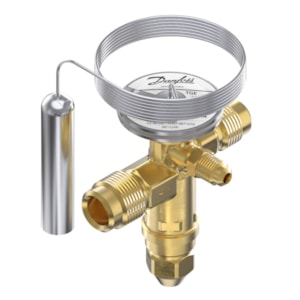

VAN TIẾT LƯU NHIỆT DANFOSS TGE 2.5, R134a; R513A - C/N 067N7154

Gross weight

0.504 Kilogram

Net weight

0.392 Kilogram

Volume

1.739 Liter

EAN

5702428170123

Type

TGE

Product group

Expansion valves

Product Name Description

Thermostatic expansion valve

Approval

C UL US LISTED; EAC; LLC CDC TYSK

Balanced port [Yes/No]

Yes

Body material

Brass

Capillary tube length [in]

59 in

Capillary tube length [mm]

1500 mm

China RoHS compliance

Out of scope

Connection material

Brass

Contains batteries

No

Direction

Straightway

Element temperature max. [°C]

110 °C

Element temperature max. [°F]

230 °F

Equalization connection type

Flare

Equalization size [in]

1/4 in

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Flow direction

Bi-flow

Flow direction indicator

Embossed 1-way arrow

Fluid Group

2

Inlet connection type

Flare

Inlet size [in]

3/8 in

Max. Working Pressure [bar]

49 bar

Max. Working Pressure [psig]

711 psig

Orifice capacities [kW]

8 kW

Orifice capacities [TR]

2.5 TR

Orifice size

4

Outlet connection type

Flare

Outlet size [in]

1/2 in

Packing format

Multi pack

Parts included

Bulb strap

PED category

Art. 4, par. 3

Pressure equalization

Externally equalized

Product accessories

TXV accessories

Quantity per packing format

12 pc

Rated cap. cond. Range N [IMP]

tcond=100 °F; tevap=40 °F; tliq=98 °F

Rated cap. cond. Range N [SI]

tcond=38 °C; tevap=4.4 °C; tliq=37 °C

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Refrigerants

R134a; R513A

SCIP dossier no.

3c484d77-61a0-4822-8540-e10a4d795088

SCIP dossier product name

TGE -Thermostatic expansion valve

Serviceable

No

Static Superheat (SS) [°C]

4 °C

Static Superheat (SS) [°F]

7.2 °F

Superheat setting

Adjustable

Temperature range [°C] [max]

10 °C

Temperature range [°C] [min]

-40 °C

Temperature range [°F] [max]

50 °F

Temperature range [°F] [min]

-40 °F

UL approved refrigerants

R134a; R513A

UL evaluated

Yes
