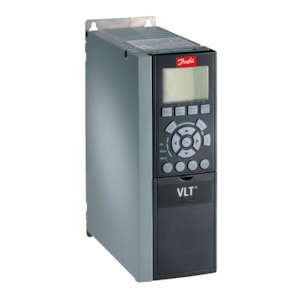

MÁY BIẾN TẦN DANFOSS FC302 2.2KW - C/N 131H6892

Gross weight

4.886 Kilogram

Net weight

4.04 Kilogram

Volume

21.569 Liter

EAN

5710107194117

Product View (Switch)

GLBL

Global (Standard)

Product Group

FC-

VLT^® AutomationDrive FC-

Series

302

302

Power Rating

P2K2

(P2K2) 2.2 KW / 3.0 HP

Phase

T

Three phase

Mains Voltage

5

380 - 500 VAC

Enclosure

E20

(E20) IP20 / Chassis

RFI Filter

H2

RFI Filter

Brake - Safe Stop

B

Brake chopper

LCP

N

Numerical Loc. Cont. Panel

Coating PCB

C

Coated PCB

Mains Option

X

No Mains Option

Adaptation A

X

Standard Cable Entries

Adaptation B

X

No adaptation

Software Release

SXXX

Latest release std. SW.

Software Language Pack

X

Standard Language Pack

A Option

AX

No A Option

B Option

BX

No B Option

C0 Option MCO

CX

No C0 option

C1 Option

X

No C1 option

C Option Software

XX

No software option

D Option

DX

No D option

Frame Size

A2

A2

Typecode Part 1

FC-302P2K2T5E20H2BNC

Typecode Part 2

XXXSXXXXAXBXCXXXXDX

Product Catalog

NO_VIEW

NO VIEW

Power 160% (HO) [KW]

2.2

2.2

Height [mm]

268,0

268,0

Width w/ no C options [mm]

90,0

90,0

Width w/ two C options [mm]

150,0

150,0

Depth [mm]

205,0

205,0

Depth with Option A/B [mm]

220,0

220,0

kVA

3.88

3.88

Power Loss HO [W]

88

88

Power Loss HO [W]

88

88

Continuous Current (HO) [A]

5.6

5.6

Intermittent Current (HO) [A]

8.96

8.96

Continuous Current (HO) [A]

4.8

4.8

Intermittent Current (HO) [A]

7.68

7.68

Calculated Gross Weight [kg]

4.886

Calculated Net Weight [kg]

4.04

ECCN EU

Y901

Y901

ECCN US

3A999.a

3A999.a

Vendor

ERR01

Cannot Determine Vendor

Recommended Factory

ERR01

Cannot Determine Vendor

Modelcode01

FC-302P2K2T5E20H2BNC

Modelcode02

XXXSXXXXAXBXCXXXXDX

Recommended Plant

ERR01

ERR01
