may-bien-tan-danfoss-fc360-160kw-c-n-137h3084

MÁY BIẾN TẦN DANFOSS FC360 160KW - C/N 137H3084

Mã sản phẩm: 137H3084

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

Chi tiết
Tính năng
Video

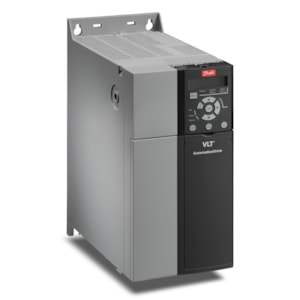

MÁY BIẾN TẦN DANFOSS FC360 160KW - C/N 137H3084

FC-360H160T4E20H2XXCXXXSXXXXALBX

Frequency converter
FC-360H160T4E20H2XXCXXXSXXXXALBX
VLT^® AutomationDrive FC-(360) 360
160 KW / 250 HP, (T4) 380-480VAC (Three phased) IP20 / Chassis
RFI Class A2, (X) No Brake Chopper
No Display (No Blind Cover)
(C) Coated PCB, No mains option
Control Card With ProfiNet, (BX) No B Option

Product details

Gross weight		184.62 Kilogram
Net weight		164 Kilogram
EAN		5715253397115

Product View (Switch)	GLBL	Global (Standard)
Product Group	FC-	VLT^® AutomationDrive FC-
Series	360	(360) 360
Power	H	High Overload
Power Size	160	160 KW / 250 HP
Voltage	T4	(T4) 380-480VAC (Three phased)
Enclosure	E20	IP20 / Chassis
RFI Filter	H2	RFI Class A2
Brake & Stop	X	(X) No Brake Chopper
Display	X	No Display (No Blind Cover)
Coating	C	(C) Coated PCB
Mains Option	X	No mains option
Adaptation A	X	Standard Cable Entries
Adaptation B	X	No Adaptation
Special Version	SXXX	Latest release – Std. Software
Software Language Pack	X	Standard Language Pack
Control Card	AL	Control Card With ProfiNet
B Option	BX	(BX) No B Option
Frame Size	J9	J9
Typecode Part 1		FC-360H160T4E20H2XXC
Typecode Part 2		XXXSXXXXALBX
Product Catalog	NO_VIEW	NO VIEW
ECCN EU	Y901	Y901
ECCN US	3A999.a	3A999.a
Calculated Gross Weight [kg]		184.62
Calculated Net Weight [kg]		164
Vendor	ERR01	Cannot Determine Vendor
Recommended Factory	ERR01	Cannot Determine Vendor
Modelcode01		FC-360H160T4E20H2XXC
Modelcode02		XXXSXXXXALBX
Recommended Plant	ERR01	ERR01
