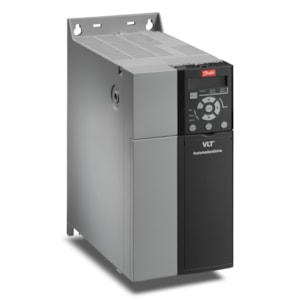

MÁY BIẾN TẦN DANFOSS FC360 75KW - C/N 134F3026

Gross weight

39.6 Kilogram

Net weight

39.6 Kilogram

EAN

5710107427819

Product View (Switch)

GLBL

Global (Standard)

Product Group

FC-

VLT^® AutomationDrive FC-

Series

360

(360) 360

Power

H

High Overload

Power Size

75K

75 KW / 100 HP

Voltage

T4

(T4) 380-480VAC (Three phased)

Enclosure

E20

IP20 / Chassis

RFI Filter

H2

RFI Class A2

Brake & Stop

X

(X) No Brake Chopper

Display

X

No Display (No Blind Cover)

Coating

C

(C) Coated PCB

Mains Option

D

Loadsharing

Adaptation A

X

Standard Cable Entries

Adaptation B

X

No Adaptation

Special Version

SXXX

Latest release – Std. Software

Software Language Pack

X

Standard Language Pack

Control Card

AL

Control Card With ProfiNet

B Option

BX

(BX) No B Option

Frame Size

J7

J7

Typecode Part 1

FC-360H75KT4E20H2XXC

Typecode Part 2

DXXSXXXXALBX

Product Catalog

GLBL

Global (Standard)

ECCN EU

Y901

Y901

ECCN US

3A999.a

3A999.a

Calculated Gross Weight [kg]

39.71

Calculated Net Weight [kg]

38.7

Plant from Orderline

E501

E501

Vendor

ERR01

Cannot Determine Vendor

Recommended Factory

ERR01

Cannot Determine Vendor

Modelcode01

FC-360H75KT4E20H2XXC

Modelcode02

DXXSXXXXALBX
