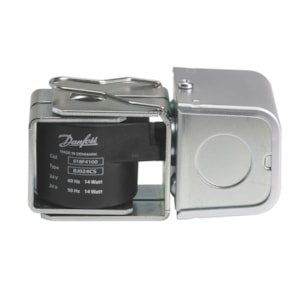

CUỘN ĐIỆN TỪ DANFOSS BJ240CS - C/N 018F4120

Mã sản phẩm: 018F4120

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

CUỘN ĐIỆN TỪ DANFOSS BJ240CS - C/N 018F4120

Product details

Actuator size	13.5 mm
Ambient temperature range [°C] [max]	50 °C
Ambient temperature range [°C] [min]	-40 °C
Ambient temperature range [°F] [max]	120 °F
Ambient temperature range [°F] [min]	-40 °F
Approval	C UL US LISTED; LLC CDC TYSK
Cable length [in]	8 in
Cable length [m]	0.2 m
China RoHS compliance	Out of scope
Coil connection	Junction Box
Coil design standard	UL 429
Coil fastening	Clip-on
Coil winding insulation class	Class H to IEC 85
Colour	Black
Compliance	UL 429
Contains batteries	No
EEE category	5 small equipment (any external dimension < 50 cm)
Electrical conn. comments	Flying leads
Electrical connection	Junction Box
Electrical connection standard	UL50E CLASS 2
Enclosure rating IP	IP30
Enclosure rating Nema (~)	2
EU RoHS compliance	Out of scope
Frame design	Ext. metal frame
Frequency [Hz]	50/60 Hz
In scope of WEEE	Yes
Packing format	Multi pack
Parts Program name	EV210B; EV215B; EV220B 15 – 50; EV220B 6 – 22; EV225B; EV245B; EV250B
Pollution degree	3
Power consumption [W] 50Hz	17 W
Power consumption [W] 60Hz	14 W
Product accessories	Solenoid coil accessories
Quantity per packing format	35 pc
REACH Candidate List substances	No
Rel. Humidity [% RH] [max]	97 %
Rel. Humidity [% RH] [min]	0 %
Rel. Humidity conditions	Non-condensation
Serviceable	No
Spare part number	018F4120
Supply voltage 50Hz Max [V]	230 V
Supply voltage 60Hz Max [V]	240 V
Supply voltage 60Hz Min [V]	208 V
Supply voltage [V] AC	230 V
Type designation	BJ240CS
UL approval file name	MH29671
UL evaluated	Yes
