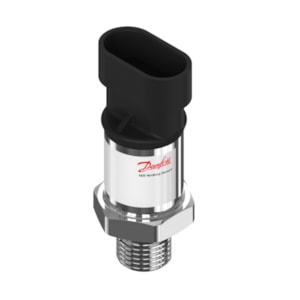

CẢM BIẾN ÁP SUẤT DANFOSS MBS 1250, 0 - 60 bar, 0 - 870 psi - C/N 063G4801

Gross weight

0.052 Kilogram

Net weight

0.05 Kilogram

Volume

0.087 Liter

EAN

5702428987691

Type

MBS 1250

Product group

Sensors

Product Name Description

Pressure transmitter

+ supply

Pin 1

- common

Pin 2

Accuracy, typical [±FS%]

0.5 %

Ambient temperature range [°C] [max]

100 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

212 °F

Ambient temperature range [°F] [min]

-40 °F

Burst pressure [bar]

1400 bar

Burst pressure [psig]

20000 psig

CE evaluated

Yes

China RoHS compliance

Out of scope

Compensated temp. range [°C] [max]

125 °C

Compensated temp. range [°C] [min]

-40 °C

Compensated temp. range [°F] [max]

257 °F

Compensated temp. range [°F] [min]

-40 °F

Contains batteries

No

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical conn. Male/Female

Male

Electrical connection

AMP SuperSeal

Electrical connection size

3 pin

Electrical connection standard

1,5 SERIES

Enclosure rating IP

IP67

EU RoHS compliance

Yes

EU RoHS exemption clause

No

Identical product

063G1801

In scope of WEEE

Yes

Medium temperature range [°C] [max]

125 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

257 °F

Medium temperature range [°F] [min]

-40 °F

Output signal

Current

Output signal [mA] [max]

20 mA

Output signal [mA] [min]

4 mA

Overload pressure max. [bar]

210 bar

Overload pressure max. [psig]

3000 psig

Packing format

Industrial pack

Pin surface material

Sn

Pressure connection HEX [mm]

22 mm

Pressure connection notes

A

Pressure connection size

1/4

Pressure connection standard

DIN 3852-E

Pressure connection type

G

Pressure Male/Female

Male

Pressure range [bar] [max]

60 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

870 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Gauge (relative)

Pulse-snubber

Yes

Quantity per packing format

50 pc

REACH Candidate List substances

No

Response time max. [ms]

1 ms

Specification key

MBS 1250-28-11-C4GB04

Supply voltage [V] DC [max]

30 V

Supply voltage [V] DC [min]

8 V

UL evaluated

Yes
