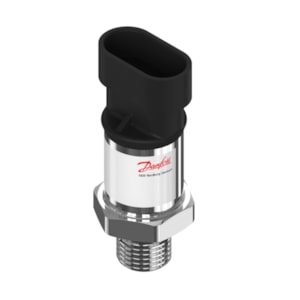

CẢM BIẾN ÁP SUẤT DANFOSS MBS 1250, 0 - 10 bar, 0 - 145 psi - C/N 063G4669

Gross weight

0.062 Kilogram

Net weight

0.058 Kilogram

Volume

0.225 Liter

EAN

5702428445023

Type

MBS 1250

Product group

Sensors

Product Name Description

Pressure transmitter

+ output

Pin 1

+ supply

Pin 3

- common

Pin 2

Accuracy, typical [±FS%]

0.5 %

Ambient temperature range [°C] [max]

125 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

257 °F

Ambient temperature range [°F] [min]

-40 °F

Burst pressure [bar]

400 bar

Burst pressure [psig]

5800 psig

CE evaluated

Yes

China RoHS compliance

Out of scope

Compensated temp. range [°C] [max]

125 °C

Compensated temp. range [°C] [min]

-40 °C

Compensated temp. range [°F] [max]

257 °F

Compensated temp. range [°F] [min]

-40 °F

Contains batteries

No

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical conn. Male/Female

Male

Electrical connection

AMP SuperSeal

Electrical connection size

3 pin

Electrical connection standard

1,5 SERIES

Enclosure rating IP

IP67

EU RoHS compliance

Yes

EU RoHS exemption clause

No

In scope of WEEE

Yes

Medium temperature range [°C] [max]

125 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

257 °F

Medium temperature range [°F] [min]

-40 °F

Output signal

Ratio metric

Overload pressure max. [bar]

30 bar

Overload pressure max. [psig]

435 psig

Packing format

Industrial pack

Pin surface material

Sn

Pressure connection HEX [mm]

22 mm

Pressure connection size

1/8-27

Pressure connection standard

ANSI/ASME B1.20.1

Pressure connection type

NPT

Pressure Male/Female

Male

Pressure range [bar] [max]

10 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

145 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Gauge (relative)

Pulse-snubber

Yes

Quantity per packing format

50 pc

Ratiometric [V] [max]

4.5 V

Ratiometric [V] [min]

0.5 V

REACH Candidate List substances

No

Response time max. [ms]

1 ms

Specification key

MBS 1250-2016-C4AC02

Supply voltage [V] DC [max]

5.5 V

Supply voltage [V] DC [min]

4.5 V

UL evaluated

Yes
