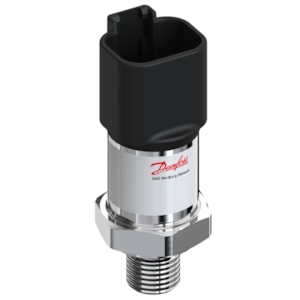

CẢM BIẾN ÁP SUẤT DANFOSS MBS 1250, 0 - 40 bar, 0 - 580 psi - C/N 063G4269

Gross weight

0.067 Kilogram

Net weight

0.066 Kilogram

Volume

0.225 Liter

EAN

5702423259991

Type

MBS 1250

Product group

Sensors

Product Name Description

Pressure transmitter

+ supply

Pin 2

- common

Pin 1

Accuracy, typical [±FS%]

0.5 %

Ambient temperature range [°C] [max]

100 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

212 °F

Ambient temperature range [°F] [min]

-13 °F

Burst pressure [bar]

800 bar

Burst pressure [psig]

11600 psig

CE evaluated

Yes

China RoHS compliance

Out of scope

Compensated temp. range [°C] [max]

125 °C

Compensated temp. range [°C] [min]

-40 °C

Compensated temp. range [°F] [max]

257 °F

Compensated temp. range [°F] [min]

-40 °F

Contains batteries

No

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical conn. Male/Female

Male

Electrical connection

Deutsch

Electrical connection size

4 pin

Electrical connection standard

DT04

Enclosure rating IP

IP67

EU RoHS compliance

Yes

EU RoHS exemption clause

No

Identical product

063G1269

In scope of WEEE

Yes

Medium temperature range [°C] [max]

125 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

257 °F

Medium temperature range [°F] [min]

-40 °F

Output signal

Current

Output signal [mA] [max]

20 mA

Output signal [mA] [min]

4 mA

Overload pressure max. [bar]

120 bar

Overload pressure max. [psig]

1740 psig

Packing format

Industrial pack

Pin surface material

Au

Pressure connection HEX [mm]

22 mm

Pressure connection notes

A

Pressure connection size

1/4

Pressure connection standard

DIN 3852-E

Pressure connection type

G

Pressure Male/Female

Male

Pressure range [bar] [max]

40 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

580 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Gauge (relative)

Pulse-snubber

Yes

Quantity per packing format

50 pc

REACH Candidate List substances

No

Response time max. [ms]

1 ms

Specification key

MBS 1250-2611-C3GB04

Supply voltage [V] DC [max]

30 V

Supply voltage [V] DC [min]

8 V

UL evaluated

Yes
