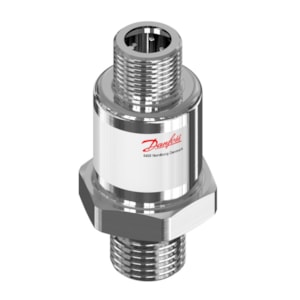

CẢM BIẾN ÁP SUẤT DANFOSS MBS 1250, 0 - 600 bar, 0 - 8700 psi - C/N 063G3021

Gross weight

62 Gram

Net weight

60 Gram

Volume

0.09 Liter

EAN

5715255109846

Type

MBS 1250

Product group

Sensors

Product Name Description

Pressure transmitter

+ output

Pin 4

+ supply

Pin 1

- common

Pin 3

Accuracy, typical [±FS%]

0.5 %

Ambient temperature range [°C] [max]

125 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

257 °F

Ambient temperature range [°F] [min]

-40 °F

Burst pressure [bar]

4000 bar

CE evaluated

Yes

China RoHS compliance

Out of scope

Compensated temp. range [°C] [max]

125 °C

Compensated temp. range [°C] [min]

-40 °C

Compensated temp. range [°F] [max]

257 °F

Compensated temp. range [°F] [min]

-40 °F

Contains batteries

No

Electrical conn. Male/Female

Male

Electrical connection

M12 x 1

Electrical connection size

4 pin

Electrical connection standard

EN 60947-5-2

Enclosure rating IP

IP67

EU RoHS compliance

Yes

EU RoHS exemption clause

No

Medium temperature range [°C] [max]

125 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

257 °F

Medium temperature range [°F] [min]

-40 °F

Output signal

Voltage

Output signal [V] [max]

5 V

Output signal [V] [min]

0 V

Overload pressure max. [bar]

2100 bar

Packing format

Multi pack

Pin surface material

Au

Pressure connection HEX [mm]

22 mm

Pressure connection size

12 x 1

Pressure connection standard

ISO 6149-2

Pressure connection type

M

Pressure Male/Female

Male

Pressure range [bar] [max]

600 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

8700 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Gauge (relative)

Pulse-snubber

Yes

Quantity per packing format

48 pc

REACH Candidate List substances

No

Response time max. [ms]

1 ms

Specification key

MBS 1250-3812-C1FA05

Supply voltage [V] DC [max]

30 V

Supply voltage [V] DC [min]

8 V

UL evaluated

Yes
