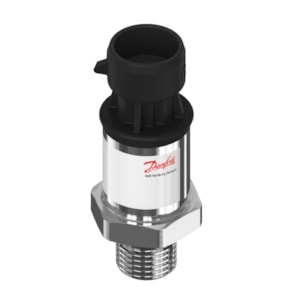

CẢM BIẾN ÁP SUẤT DANFOSS MBS 1250, 0 - 10 bar, 0 - 145 psi - C/N 063G2331

Gross weight

0.066 Kilogram

Net weight

0.056 Kilogram

Volume

0.097 Liter

EAN

5702428535113

Type

MBS 1250

Product group

Sensors

Product Name Description

Pressure transmitter

+ output

Pin C

+ supply

Pin B

- common

Pin A

Accuracy, typical [±FS%]

0.5 %

Ambient temperature range [°C] [max]

125 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

257 °F

Ambient temperature range [°F] [min]

-40 °F

Burst pressure [bar]

400 bar

Burst pressure [psig]

5800 psig

CE evaluated

Yes

China RoHS compliance

Out of scope

Compensated temp. range [°C] [max]

125 °C

Compensated temp. range [°C] [min]

-40 °C

Compensated temp. range [°F] [max]

257 °F

Compensated temp. range [°F] [min]

-40 °F

Contains batteries

No

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical conn. Male/Female

Male

Electrical connection

Round Packard Metri-Pack

Electrical connection size

3 pin

Electrical connection standard

150.2 SERIES

Enclosure rating IP

IP67

EU RoHS compliance

Yes

EU RoHS exemption clause

No

Identical product

063G5331

In scope of WEEE

Yes

Legacy part number

11226117

Medium temperature range [°C] [max]

125 °C

Medium temperature range [°C] [min]

-25 °C

Medium temperature range [°F] [max]

257 °F

Medium temperature range [°F] [min]

-13 °F

Output signal

Ratio metric

Overload pressure max. [bar]

30 bar

Overload pressure max. [psig]

435 psig

Packing format

Multi pack

Pin surface material

Sn

Pressure connection HEX [mm]

22 mm

Pressure connection size

1/4-18

Pressure connection standard

ANSI/ASME B1.20.3

Pressure connection type

NPTF

Pressure Male/Female

Male

Pressure range [bar] [max]

10 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

145 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Gauge (relative)

Pulse-snubber

Yes

Quantity per packing format

48 pc

Ratiometric [V] [max]

4.5 V

Ratiometric [V] [min]

0.5 V

REACH Candidate List substances

No

Response time max. [ms]

1 ms

Specification key

MBS 1250-2016-C2AF04

Supply voltage [V] DC [max]

5.5 V

Supply voltage [V] DC [min]

4.5 V

UL evaluated

Yes
