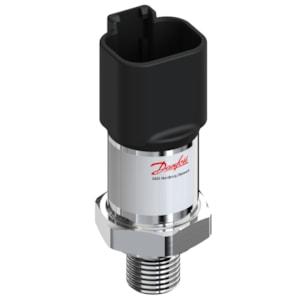

CẢM BIẾN ÁP SUẤT DANFOSS MBS 1250, 0 - 200 bar, 0 - 2900 psi - C/N 063G1839

Gross weight

72 Gram

Net weight

60 Gram

Volume

0.09 Liter

EAN

5702428867634

Type

MBS 1250

Product group

Sensors

Product Name Description

Pressure transmitter

+ output

Pin B

+ supply

Pin A

- common

Pin C

Accuracy, typical [±FS%]

0.5 %

Ambient temperature range [°C] [max]

125 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

257 °F

Ambient temperature range [°F] [min]

-40 °F

Burst pressure [bar]

2000 bar

Burst pressure [psig]

29000 psig

CE evaluated

Yes

China RoHS compliance

Out of scope

Compensated temp. range [°C] [max]

125 °C

Compensated temp. range [°C] [min]

-40 °C

Compensated temp. range [°F] [max]

257 °F

Compensated temp. range [°F] [min]

-40 °F

Contains batteries

No

Electrical conn. Male/Female

Male

Electrical connection

Deutsch

Electrical connection size

3 pin

Electrical connection standard

DT04

Enclosure rating IP

IP67

EU RoHS compliance

Yes

EU RoHS exemption clause

No

Identical product

063G4839

Medium temperature range [°C] [max]

125 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

257 °F

Medium temperature range [°F] [min]

-40 °F

Output signal

Voltage

Output signal [V] [max]

5 V

Output signal [V] [min]

1 V

Overload pressure max. [bar]

750 bar

Overload pressure max. [psig]

10800 psig

Packing format

Multi pack

Pin surface material

Sn

Pressure connection HEX [mm]

22 mm

Pressure connection size

9/16-18

Pressure connection standard

SAE J1926/2

Pressure connection type

UNF

Pressure Male/Female

Male

Pressure range [bar] [max]

200 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

2900 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Gauge (relative)

Pulse-snubber

Yes

Quantity per packing format

48 pc

REACH Candidate List substances

No

Response time max. [ms]

1 ms

Specification key

MBS 1250-3313-C7BD11

Supply voltage [V] DC [max]

30 V

Supply voltage [V] DC [min]

8 V

UL evaluated

Yes
