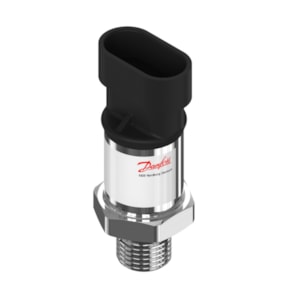

CẢM BIẾN ÁP SUẤT DANFOSS MBS 1200, 0 - 250 bar, 0 - 3625 psi - C/N 063G5248

Gross weight

0.066 Kilogram

Net weight

0.052 Kilogram

EAN

5702428991698

Type

MBS 1200

Product group

Sensors

Product Name Description

Pressure transmitter

+ output

Pin 2

+ supply

Pin 3

- common

Pin 1

Accuracy, typical [±FS%]

0.5 %

Ambient temperature range [°C] [max]

125 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

257 °F

Ambient temperature range [°F] [min]

-40 °F

Approval

CE; C UL US UL Recognized

Burst pressure [bar]

2500 bar

Burst pressure [psig]

36250 psig

CE evaluated

Yes

China RoHS compliance

Out of scope

Compensated temp. range [°C] [max]

125 °C

Compensated temp. range [°C] [min]

-40 °C

Compensated temp. range [°F] [max]

257 °F

Compensated temp. range [°F] [min]

-40 °F

Contains batteries

No

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical conn. Male/Female

Male

Electrical connection

AMP SuperSeal

Electrical connection size

3 pin

Electrical connection standard

1,5 SERIES

Enclosure rating IP

IP67

EU RoHS compliance

Yes

EU RoHS exemption clause

No

Identical product

063G2248

In scope of WEEE

Yes

Medium temperature range [°C] [max]

125 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

257 °F

Medium temperature range [°F] [min]

-40 °F

Output signal

Ratio metric

Overload pressure max. [bar]

500 bar

Overload pressure max. [psig]

7250 psig

Packing format

Industrial pack

Pin surface material

Sn

Pressure connection HEX [mm]

22 mm

Pressure connection notes

A

Pressure connection size

1/4

Pressure connection standard

DIN 3852-E

Pressure connection type

G

Pressure Male/Female

Male

Pressure range [bar] [max]

250 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

3625 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Gauge (relative)

Pulse-snubber

No

Quantity per packing format

50 pc

Ratiometric [V] [max]

4.5 V

Ratiometric [V] [min]

0.5 V

REACH Candidate List substances

No

Response time max. [ms]

1 ms

Specification key

MBS 1200-3416-C4GB04

Supply voltage [V] DC [max]

5.5 V

Supply voltage [V] DC [min]

4.5 V

UL evaluated

Yes
