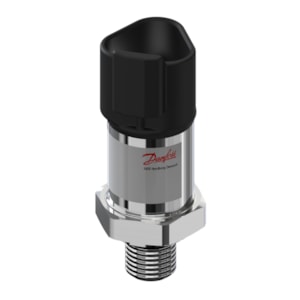

CẢM BIẾN ÁP SUẤT DANFOSS MBS 1200, 0- 600 bar, 0 - 8700 psi - C/N 063G2429

Gross weight

0.066 Kilogram

Net weight

0.057 Kilogram

Volume

0.098 Liter

EAN

5715162418192

Type

MBS 1200

Product group

Sensors

Product Name Description

Pressure transmitter

+ output

Pin C

+ supply

Pin A

- common

Pin B

Accuracy, typical [±FS%]

0.5 %

Ambient temperature range [°C] [max]

125 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

257 °F

Ambient temperature range [°F] [min]

-40 °F

Approval

CE; C UL US UL Recognized

Burst pressure [bar]

4000 bar

Burst pressure [psig]

58000 psig

CE evaluated

Yes

China RoHS compliance

Out of scope

Compensated temp. range [°C] [max]

125 °C

Compensated temp. range [°C] [min]

-40 °C

Compensated temp. range [°F] [max]

257 °F

Compensated temp. range [°F] [min]

-40 °F

Contains batteries

No

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical conn. Male/Female

Male

Electrical connection

Deutsch

Electrical connection size

3 pin

Electrical connection standard

DT04

Enclosure rating IP

IP67

EU RoHS compliance

Yes

EU RoHS exemption clause

No

In scope of WEEE

Yes

Medium temperature range [°C] [max]

125 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

257 °F

Medium temperature range [°F] [min]

-40 °F

Output signal

Ratio metric

Overload pressure max. [bar]

1400 bar

Overload pressure max. [psig]

20300 psig

Packing format

Multi pack

Pin surface material

Sn

Pressure connection HEX [mm]

22 mm

Pressure connection size

7/16-20

Pressure connection standard

SAE J1926/2

Pressure connection type

UNF

Pressure Male/Female

Male

Pressure range [bar] [max]

600 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

8700 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Gauge (relative)

Pulse-snubber

No

Quantity per packing format

48 pc

Ratiometric [V] [max]

4.5 V

Ratiometric [V] [min]

0.5 V

REACH Candidate List substances

No

Response time max. [ms]

1 ms

Specification key

MBS 1200-3816-C7BD08

Supply voltage [V] DC [max]

5.5 V

Supply voltage [V] DC [min]

4.5 V

UL evaluated

Yes
