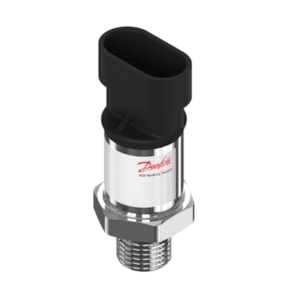

CẢM BIẾN ÁP SUẤT DANFOSS MBS 1200, 0 - 250 bar, 0 - 3625 psi - C/N 063G2248

Gross weight

0.066 Kilogram

Net weight

0.062 Kilogram

Volume

0.098 Liter

EAN

5702428991681

Type

MBS 1200

Product group

Sensors

Product Name Description

Pressure transmitter

+ output

Pin 2

+ supply

Pin 3

- common

Pin 1

Accuracy, typical [±FS%]

0.5 %

Ambient temperature range [°C] [max]

125 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

257 °F

Ambient temperature range [°F] [min]

-40 °F

Approval

CE; C UL US UL Recognized

Burst pressure [bar]

2500 bar

Burst pressure [psig]

36250 psig

CE evaluated

Yes

China RoHS compliance

Out of scope

Compensated temp. range [°C] [max]

125 °C

Compensated temp. range [°C] [min]

-40 °C

Compensated temp. range [°F] [max]

257 °F

Compensated temp. range [°F] [min]

-40 °F

Contains batteries

No

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical conn. Male/Female

Male

Electrical connection

AMP SuperSeal

Electrical connection size

3 pin

Electrical connection standard

1,5 SERIES

Enclosure rating IP

IP67

EU RoHS compliance

Yes

EU RoHS exemption clause

No

In scope of WEEE

Yes

Legacy part number

11231318

Medium temperature range [°C] [max]

125 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

257 °F

Medium temperature range [°F] [min]

-40 °F

Output signal

Ratio metric

Overload pressure max. [bar]

500 bar

Overload pressure max. [psig]

7250 psig

Packing format

Multi pack

Pin surface material

Sn

Pressure connection HEX [mm]

22 mm

Pressure connection notes

A

Pressure connection size

1/4

Pressure connection standard

DIN 3852-E

Pressure connection type

G

Pressure Male/Female

Male

Pressure range [bar] [max]

250 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

3625 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Gauge (relative)

Pulse-snubber

No

Quantity per packing format

48 pc

Ratiometric [V] [max]

4.5 V

Ratiometric [V] [min]

0.5 V

REACH Candidate List substances

No

Response time max. [ms]

1 ms

Specification key

MBS 1200-3416-C4GB04

Supply voltage [V] DC [max]

5.5 V

Supply voltage [V] DC [min]

4.5 V

UL evaluated

Yes
