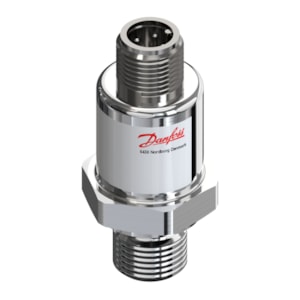

CẢM BIẾN ÁP SUẤT DANFOSS MBS 1200, 0 - 20 bar, 0 - 290 psi - C/N 063G1655

Gross weight

0.062 Kilogram

Net weight

0.061 Kilogram

Volume

0.097 Liter

EAN

5702428441704

Type

MBS 1200

Product group

Sensors

Product Name Description

Pressure transmitter

+ supply

Pin 1

- common

Pin 3

Accuracy, typical [±FS%]

0.5 %

Ambient temperature range [°C] [max]

100 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

212 °F

Ambient temperature range [°F] [min]

-40 °F

Approval

CE; C UL US UL Recognized

Burst pressure [bar]

640 bar

Burst pressure [psig]

9200 psig

CE evaluated

Yes

China RoHS compliance

Out of scope

Compensated temp. range [°C] [max]

125 °C

Compensated temp. range [°C] [min]

-40 °C

Compensated temp. range [°F] [max]

257 °F

Compensated temp. range [°F] [min]

-40 °F

Contains batteries

No

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical conn. Male/Female

Male

Electrical connection

M12 x 1

Electrical connection size

4 pin

Electrical connection standard

EN 60947-5-2

Enclosure rating IP

IP67

EU RoHS compliance

Yes

EU RoHS exemption clause

No

In scope of WEEE

Yes

Medium temperature range [°C] [max]

125 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

257 °F

Medium temperature range [°F] [min]

-40 °F

Output signal

Current

Output signal [mA] [max]

20 mA

Output signal [mA] [min]

4 mA

Overload pressure max. [bar]

48 bar

Overload pressure max. [psig]

700 psig

Packing format

Multi pack

Pin surface material

Au

Pressure connection HEX [mm]

22 mm

Pressure connection notes

A

Pressure connection size

1/4

Pressure connection standard

DIN 3852-E

Pressure connection type

G

Pressure Male/Female

Male

Pressure range [bar] [max]

20 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

290 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Gauge (relative)

Pulse-snubber

No

Quantity per packing format

48 pc

REACH Candidate List substances

No

Response time max. [ms]

1 ms

Specification key

MBS 1200-2311-C1GB04

Supply voltage [V] DC [max]

30 V

Supply voltage [V] DC [min]

8 V

UL evaluated

Yes
