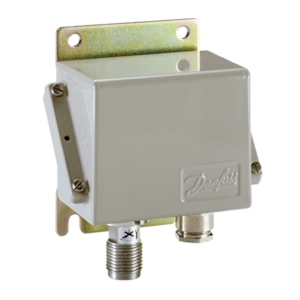

CẢM BIẾN ÁP SUẤT DANFOSS EMP 2, 0 - 5 bar, 0 - 72.5 psi - C/N 084G2194

Gross weight

1.063 Kilogram

Net weight

0.98 Kilogram

Volume

2.385 Liter

EAN

5702423289592

Type

EMP 2

Product group

Sensors

Product Name Description

Pressure transmitter

+ supply

P

- common

N

Accuracy, max. [±FS%]

1 %

Accuracy, typical [±FS%]

0.5 %

Approval

ABS ; BV ; CCS ; DNV ; GL ; GOST POCC ; KR ; LR ; NNK ; RINA ; CE

CE evaluated

Yes

China RoHS compliance

Out of scope

Compensated temp. range [°C] [max]

70 °C

Compensated temp. range [°C] [min]

0 °C

Compensated temp. range [°F] [max]

158 °F

Compensated temp. range [°F] [min]

32 °F

Contains batteries

No

Electrical connection

Terminal block

Electrical connection size

Pg 13.5

Enclosure rating IP

IP65

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

7(c)-I

Flush diaphragm

No

High Clipping Level

22.4

International Article Number

5702423289592

Intrinsically safe

No

Low Clipping level

3.6

Medium temperature range [°C] [max]

70 °C

Medium temperature range [°C] [min]

-10 °C

Medium temperature range [°F] [max]

158 °F

Medium temperature range [°F] [min]

14 °F

Non-linearity BFSL [±FS%]

0.3 %

Output signal

Current

Output signal [mA] [max]

20 mA

Output signal [mA] [min]

4 mA

Overload pressure max. [bar]

10 bar

Packing format

Multi pack

Pressure connection notes

EXT. G1/4 INT

Pressure connection size

1/2

Pressure connection standard

EN 228-1

Pressure connection type

G

Pressure Male/Female

Male/Female

Pressure range [bar] [max]

5 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

72.5 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Gauge (relative)

Pulse-snubber

No

Quantity per packing format

8 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Response time max. [ms]

4 ms

SCIP dossier no.

6010d1e2-f473-4af2-afdd-bb494bdd0100

SCIP dossier product name

EMP

Specification key

EMP 2-1711-F6CD24-2

Supply voltage [V] DC [max]

32 V

Supply voltage [V] DC [min]

12 V

UL evaluated

Yes
