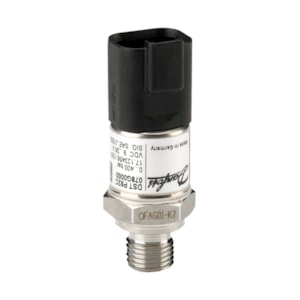

CẢM BIẾN ÁP SUẤT DANFOSS DST P92S, 0 - 250 bar, 0 - 3625 psi - C/N 078G1012

Gross weight

0.062 Kilogram

Net weight

0.052 Kilogram

Volume

0.102 Liter

EAN

5715162217870

Type

DST P92S

Product group

Sensors

Product Name Description

Pressure transmitter

+ supply

Pin 1

- common

Pin 2

Accuracy TEB [-25 - 80°C] ±FS

1.5 %

Accuracy TEB [-40 - 80°C] ±FS

2.5 %

Accuracy TEB [0 - 80°C] ±FS

1 %

Approval

CE; C UL US UL Recognized

Burst pressure [bar]

2500 bar

Burst pressure [psig]

36250 psig

CE evaluated

Yes

China RoHS compliance

Out of scope

Contains batteries

No

Electrical conn. Male/Female

Male

Electrical connection

Deutsch

Electrical connection size

4 pin

Electrical connection standard

DT04

Enclosure rating IP

IP67

EU RoHS compliance

Yes

EU RoHS exemption clause

No

Medium temperature range [°C] [max]

125 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

185 °F

Medium temperature range [°F] [min]

-104 °F

Output signal

Current

Output signal [mA] [max]

20 mA

Output signal [mA] [min]

4 mA

Overload pressure max. [bar]

500 bar

Overload pressure max. [psig]

7250 psig

Packing format

Multi pack

Pressure connection HEX [mm]

22 mm

Pressure connection notes

Viton Gasket

Pressure connection size

1/4

Pressure connection standard

DIN 3852-E

Pressure connection type

G

Pressure range [bar] [max]

250 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

3625 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Gauge (relative)

Pulse-snubber

Yes

Quantity per packing format

45 pc

REACH Candidate List substances

No

Response time max. [ms]

1 ms

Specification key

P92S-0250-BAR-R-11-01-09

Start up time [ms]

40 ms

Supply voltage [V] DC [max]

32 V

Supply voltage [V] DC [min]

9 V

UL evaluated

Yes
