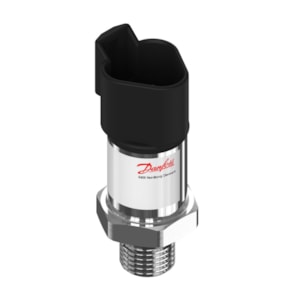

CẢM BIẾN ÁP SUẤT DANFOSS DST P650, 0 - 40 bar, 0 - 580 psi - C/N 090G7062

Gross weight

71 Gram

Net weight

57 Gram

Volume

0.09 Liter

EAN

5702424626808

Type

DST P650

Product group

Sensors

Product Name Description

Pressure transmitter

+ output

Pin C

+ supply

Pin A

- common

Pin B

Ambient temperature range [°C] [max]

125 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

257 °F

Ambient temperature range [°F] [min]

-40 °F

Approval

C UL US UL Recognized ; CE

Burst pressure [bar]

800 bar

CE evaluated

Yes

China RoHS compliance

Out of scope

Compensated temp. range [°C] [max]

125 °C

Compensated temp. range [°C] [min]

-40 °C

Compensated temp. range [°F] [max]

257 °F

Compensated temp. range [°F] [min]

-40 °F

Contains batteries

No

Country of origin

MADE IN GERMANY

Electrical conn. Male/Female

Male

Electrical connection

Deutsch DT04

Electrical connection size

3 pin

Electrical connection standard

DT04

Enclosure rating IP

IP67

EU RoHS compliance

Yes

EU RoHS exemption clause

No

High Clipping Level

94

Identical product

090G6062

In scope of WEEE

No

International Article Number

5702424626808

Low Clipping level

6

Medium temperature range [°C] [max]

125 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

257 °F

Medium temperature range [°F] [min]

-40 °F

Output signal

Ratio metric

Overload pressure max. [bar]

120 bar

Packing format

Industrial pack

Pin surface material

Sn

Pressure connection HEX [mm]

22 mm

Pressure connection size

1/4-A

Pressure connection standard

DIN 3852-E

Pressure connection type

G

Pressure Male/Female

Male

Pressure range [bar] [max]

40 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

580 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Gauge (relative)

Pulse-snubber

Yes

Quantity per packing format

50 pc

Ratiometric of Vsupply [%] [max]

90 %

Ratiometric of Vsupply [%] [min]

10 %

REACH Candidate List substances

No

Response time max. [ms]

2 ms

RoHS compliant

Yes - RoHS ok

Specification key

DST P650-2616-C7GB041

Supply voltage [V] DC [max]

5.5 V

Supply voltage [V] DC [min]

4.5 V

UL evaluated

Yes
