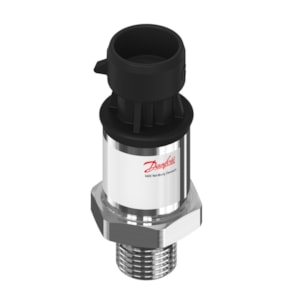

CẢM BIẾN ÁP SUẤT DANFOSS DST P650, 0 - 500 bar, 0 - 7251 psi - C/N 090G6163

Gross weight

57 Gram

Net weight

51 Gram

Volume

0.098 Liter

EAN

5715255006169

Type

DST P650

Product group

Sensors

Product Name Description

Pressure transmitter

+ output

Pin C

+ supply

Pin A

- common

Pin B

Ambient temperature range [°C] [max]

125 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

257 °F

Ambient temperature range [°F] [min]

-40 °F

Approval

C UL US UL Recognized; CE

Burst pressure [bar]

2500 bar

CE evaluated

Yes

China RoHS compliance

Out of scope

Compensated temp. range [°C] [max]

125 °C

Compensated temp. range [°C] [min]

-40 °C

Compensated temp. range [°F] [max]

257 °F

Compensated temp. range [°F] [min]

-40 °F

Contains batteries

No

Country of origin

MADE IN GERMANY

Electrical conn. Male/Female

Male

Electrical connection

Round Packard Metri-Pack

Electrical connection size

3 pin

Electrical connection standard

150.2 SERIES

Enclosure rating IP

IP67

EU RoHS compliance

Yes

EU RoHS exemption clause

No

High Clipping Level

94

In scope of WEEE

No

International Article Number

5715255006169

Low Clipping level

6

Medium temperature range [°C] [max]

125 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

257 °F

Medium temperature range [°F] [min]

-40 °F

Output signal

Ratio metric

Overload pressure max. [bar]

1500 bar

Packing format

Multi pack

Pin surface material

Sn

Pressure connection HEX [mm]

22 mm

Pressure connection size

7/16-20

Pressure connection standard

SAE J1926-2

Pressure connection type

UNF

Pressure Male/Female

Male

Pressure range [bar] [max]

500 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

7251 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Gauge (relative)

Pulse-snubber

Yes

Quantity per packing format

24 pc

Ratiometric of Vsupply [%] [max]

90 %

Ratiometric of Vsupply [%] [min]

10 %

REACH Candidate List substances

No

Response time max. [ms]

2 ms

Specification key

DST P650-3716-C2BD083

Supply voltage [V] DC [max]

5.5 V

Supply voltage [V] DC [min]

4.5 V

UL evaluated

Yes
