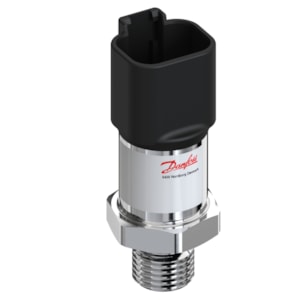

CẢM BIẾN ÁP SUẤT DANFOSS DST P650, 0 - 250 bar, 0 - 3625 psi - C/N 090G6133

Gross weight

61 Gram

Net weight

55 Gram

Volume

0.09 Liter

EAN

5715162701423

Type

DST P650

Product group

Sensors

Product Name Description

Pressure transmitter

+ output

Pin 4

+ supply

Pin 2

- common

Pin 1

Ambient temperature range [°C] [max]

125 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

257 °F

Ambient temperature range [°F] [min]

-40 °F

Approval

C UL US UL Recognized; CE

Burst pressure [bar]

2500 bar

CE evaluated

Yes

China RoHS compliance

Out of scope

Compensated temp. range [°C] [max]

125 °C

Compensated temp. range [°C] [min]

-40 °C

Compensated temp. range [°F] [max]

257 °F

Compensated temp. range [°F] [min]

-40 °F

Contains batteries

No

Country of origin

MADE IN GERMANY

Electrical conn. Male/Female

Male

Electrical connection

Deutsch DT04

Electrical connection size

4 pin

Electrical connection standard

DT04

Enclosure rating IP

IP67

EU RoHS compliance

Yes

EU RoHS exemption clause

No

High Clipping Level

4.8

Identical product

090G7133

In scope of WEEE

No

International Article Number

5715162701423

Low Clipping level

0.3

Medium temperature range [°C] [max]

125 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

257 °F

Medium temperature range [°F] [min]

-40 °F

Output signal

Voltage

Output signal [V] [max]

4.5 V

Output signal [V] [min]

0.5 V

Overload pressure max. [bar]

750 bar

Packing format

Multi pack

Pin surface material

Au

Pressure connection HEX [mm]

22 mm

Pressure connection size

1/4-A

Pressure connection standard

DIN 3852-E

Pressure connection type

G

Pressure Male/Female

Male

Pressure range [bar] [max]

250 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

3625 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Gauge (relative)

Pulse-snubber

Yes

Quantity per packing format

24 pc

REACH Candidate List substances

No

Response time max. [ms]

2 ms

RoHS compliant

Yes - RoHS ok

Specification key

DST P650-341C-C3GB041

Supply voltage [V] DC [max]

32 V

Supply voltage [V] DC [min]

8 V

UL evaluated

Yes
