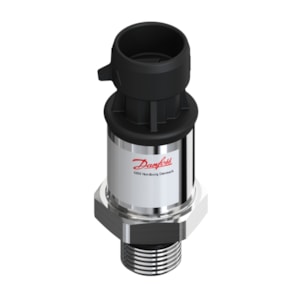

CẢM BIẾN ÁP SUẤT DANFOSS DST P650, 0 - 50 bar, 0 - 725 psi - C/N 090G6011

Gross weight

0.062 Kilogram

Net weight

0.06 Kilogram

Volume

0.098 Liter

EAN

5702424055868

Type

DST P650

Product group

Sensors

Product Name Description

Pressure transmitter

+ output

Pin C

+ supply

Pin A

- common

Pin B

Ambient temperature range [°C] [max]

125 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

257 °F

Ambient temperature range [°F] [min]

-40 °F

Approval

CE; C UL US UL Recognized

Burst pressure [bar]

1000 bar

CE evaluated

Yes

China RoHS compliance

Out of scope

Compensated temp. range [°C] [max]

125 °C

Compensated temp. range [°C] [min]

-40 °C

Compensated temp. range [°F] [max]

257 °F

Compensated temp. range [°F] [min]

-40 °F

Contains batteries

No

Country of origin

MADE IN GERMANY

Electrical conn. Male/Female

Male

Electrical connection

Round Packard Metri-Pack

Electrical connection size

3 pin

Electrical connection standard

150.2 SERIES

Enclosure rating IP

IP67

EU RoHS compliance

Yes

EU RoHS exemption clause

No

High Clipping Level

94

In scope of WEEE

No

International Article Number

5702424055868

Low Clipping level

6

Medium temperature range [°C] [max]

125 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

257 °F

Medium temperature range [°F] [min]

-40 °F

Output signal

Ratio metric

Overload pressure max. [bar]

150 bar

Packing format

Multi pack

Pin surface material

Sn

Pressure connection HEX [mm]

22 mm

Pressure connection size

1/4-A

Pressure connection standard

DIN 3852-E

Pressure connection type

G

Pressure Male/Female

Male

Pressure range [bar] [max]

50 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

725 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Gauge (relative)

Pulse-snubber

Yes

Quantity per packing format

24 pc

Ratiometric of Vsupply [%] [max]

90 %

Ratiometric of Vsupply [%] [min]

10 %

REACH Candidate List substances

No

Response time max. [ms]

2 ms

RoHS compliant

Yes - RoHS ok

Specification key

DST P650-2716-C2GB041

Supply voltage [V] DC [max]

5.5 V

Supply voltage [V] DC [min]

4.5 V

UL evaluated

Yes
