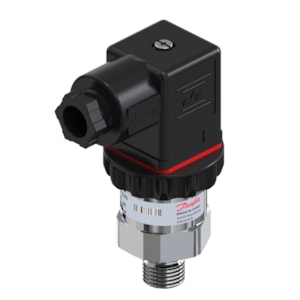

CẢM BIẾN ÁP SUẤT DANFOSS DST P40I, 0 - 1 bar, 0 - 14.5 psi - C/N 078G5013

Gross weight

0.115 Kilogram

Net weight

0.103 Kilogram

Volume

0.251 Liter

EAN

5702428577106

Type

DST P40I

Product group

Sensors

Product Name Description

Pressure transmitter

+ supply

Pin 1

- common

Pin 2

Ambient temperature range [°C] [max]

85 °C

Ambient temperature range [°C] [min]

-25 °C

Approval

C UL US UL Recognized; CE

Burst pressure [bar]

12 bar

CE evaluated

Yes

China RoHS compliance

Out of scope

Compensated temp. range [°C] [max]

80 °C

Compensated temp. range [°C] [min]

0 °C

Contains batteries

No

Electrical conn. Male/Female

Male

Electrical connection

Angular connector

Electrical connection size

Pg 9

Electrical connection standard

EN 175301-803-A

Enclosure rating IP

IP65

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Medium temperature range [°C] [max]

85 °C

Medium temperature range [°C] [min]

-15 °C

Output signal

Current

Output signal [mA] [max]

20 mA

Output signal [mA] [min]

4 mA

Overload pressure max. [bar]

8 bar

Packing format

Multi pack

Pressure connection HEX [mm]

27 mm

Pressure connection notes

A

Pressure connection size

1/4

Pressure connection standard

ISO 1179-2

Pressure connection type

G

Pressure Male/Female

Male

Pressure range [bar] [max]

1 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

14.5 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Gauge (relative)

Pulse-snubber

No

Quantity per packing format

20 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

6b078679-471a-4330-8fd4-d63473b641b0

SCIP dossier product name

Sensor DST P40I + M

Specification key

DST P40I-1011-A1GB04

Supply voltage [V] DC [max]

32 V

Supply voltage [V] DC [min]

9 V

UL evaluated

Yes
