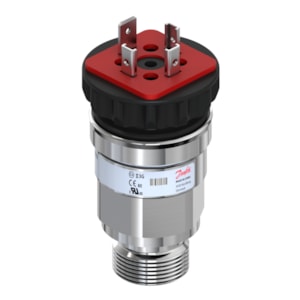

CẢM BIẾN ÁP SUẤT DANFOSS DST P40M, 0 - 11 bar, 0 - 159.5 psi - C/N 078G5033

Gross weight

0.088 Kilogram

Net weight

0.072 Kilogram

Volume

0.253 Liter

EAN

5715162932711

Type

DST P40M

Product group

Sensors

Product Name Description

Pressure transmitter

+ supply

Pin 1

- common

Pin 2

Ambient temperature range [°C] [max]

85 °C

Ambient temperature range [°C] [min]

-25 °C

Approval

C UL US UL Recognized; CE; DNV∙GL; KR; NKK

Approval comments

Marine approval: Yes

Approval standard

E10,IACS 7

Burst pressure [bar]

20 bar

CE evaluated

Yes

China RoHS compliance

Out of scope

Compensated temp. range [°C] [max]

80 °C

Compensated temp. range [°C] [min]

0 °C

Contains batteries

No

Electrical conn. Male/Female

Male

Electrical connection

Angular connector

Electrical connection size

4 pin

Electrical connection standard

EN 175301-803-A

Enclosure rating IP

IP65

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Medium temperature range [°C] [max]

85 °C

Medium temperature range [°C] [min]

-15 °C

Output signal

Current

Output signal [mA] [max]

20 mA

Output signal [mA] [min]

4 mA

Overload pressure max. [bar]

15 bar

Packing format

Multi pack

Pressure connection HEX [mm]

27 mm

Pressure connection size

12 x 1.5

Pressure connection standard

ISO 9974-2

Pressure connection type

M

Pressure Male/Female

Male

Pressure range [bar] [max]

11 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

159.5 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Gauge (relative)

Pulse-snubber

No

Quantity per packing format

20 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

6b078679-471a-4330-8fd4-d63473b641b0

SCIP dossier product name

Sensor DST P40I + M

Specification key

DST P40M-C211-A0FA20-1

Supply voltage [V] DC [max]

32 V

Supply voltage [V] DC [min]

9 V

UL evaluated

Yes
