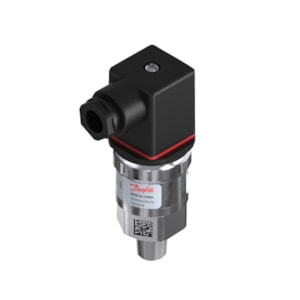

CẢM BIẾN ÁP SUẤT DANFOSS DST P300, 0 - 5 bar, 0 - 72.5 psi - C/N 076G1032

Gross weight

0.209 Kilogram

Net weight

0.157 Kilogram

Volume

0.411 Liter

EAN

5715162495391

Type

DST P300

Product group

Sensors

Product Name Description

Pressure transmitter

+ output

Pin 3

+ supply

Pin 1

- supply

Pin 2

Accuracy, max. [±FS%]

1 %

Accuracy, typical [±FS%]

0.5 %

Ambient temperature range [°C] [max]

85 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

185 °F

Ambient temperature range [°F] [min]

-40 °F

Approval

ATEX; CE; C UL US UL Recognized

Approval comments

ATEX Ex ec IIA T4 Gc

CE evaluated

Yes

China RoHS compliance

Out of scope

Compensated temp. range [°C] [max]

125 °C

Compensated temp. range [°C] [min]

-40 °C

Compensated temp. range [°F] [max]

257 °F

Compensated temp. range [°F] [min]

-40 °F

Contains batteries

No

Electrical conn. Male/Female

Male and Female

Electrical connection

Angular connector

Electrical connection size

Pg 9

Electrical connection standard

EN 175301-803-A

Enclosure rating IP

IP65

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Fault signal level

2

Flush diaphragm

No

High Clipping Level

99

International Article Number

5715162495391

Intrinsically safe

No

Low Clipping level

4

Medium temperature range [°C] [max]

125 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

257 °F

Medium temperature range [°F] [min]

-40 °F

Output signal

Ratio metric

Overload pressure max. [bar]

30 bar

Packing format

Multi pack

Pressure connection HEX [mm]

27 mm

Pressure connection size

1/4-18

Pressure connection standard

ANSI/ASME B1.20.1

Pressure connection type

NPT

Pressure Male/Female

Male

Pressure range [bar] [max]

5 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

72.5 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Gauge (relative)

Pulse-snubber

No

Quantity per packing format

14 pc

Ratiometric of Vsupply [%] [max]

90 %

Ratiometric of Vsupply [%] [min]

10 %

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Response time max. [ms]

2 ms

SCIP dossier no.

cad3914f-8db1-488c-b0ad-3a20ac1ebb41

SCIP dossier product name

DST P300

Specification key

DST P300-1716-A1AC04-0

Supply voltage [V] DC [max]

5.5 V

Supply voltage [V] DC [min]

4.5 V

UL evaluated

Yes
