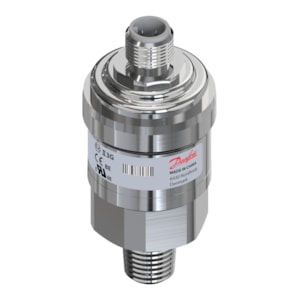

CẢM BIẾN ÁP SUẤT DANFOSS DST P310, -1 - 159 bar, -14.5 - 2305.5 psi - C/N 076G1037

Gross weight

0.158 Kilogram

Net weight

0.124 Kilogram

Volume

0.251 Liter

EAN

5715255089698

Type

DST P310

Product group

Sensors

Product Name Description

Pressure transmitter

+ output

Pin 3

+ supply

Pin 1

- supply

Pin 4

Accuracy, max. [±FS%]

1 %

Accuracy, typical [±FS%]

0.5 %

Ambient temperature range [°C] [max]

85 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

185 °F

Ambient temperature range [°F] [min]

-40 °F

Approval

C UL US UL Recognized; CE

Approval comments

E227388

Approval standard

E31024

Autofrettage Pressure

500 bar

CE evaluated

Yes

China RoHS compliance

Out of scope

Compensated temp. range [°C] [max]

80 °C

Compensated temp. range [°C] [min]

0 °C

Compensated temp. range [°F] [max]

176 °F

Compensated temp. range [°F] [min]

32 °F

Contains batteries

No

Electrical conn. Male/Female

Male

Electrical connection

M12 x 1

Electrical connection size

4 pin

Electrical connection standard

IEC 61076-2-101

Enclosure rating IP

IP67

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Fault signal level

2

Flush diaphragm

No

High Clipping Level

99

International Article Number

5715255089698

Intrinsically safe

No

Low Clipping level

4

Medium temperature range [°C] [max]

125 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

257 °F

Medium temperature range [°F] [min]

-40 °F

Output signal

Ratio metric

Overload pressure max. [bar]

960 bar

Packing format

Multi pack

Pressure connection HEX [mm]

17 mm

Pressure connection notes

Flare 1/4 in w/ valvedepressor

Pressure connection size

7/16-20

Pressure connection standard

ISO 8434-1

Pressure connection type

UNF

Pressure Male/Female

Female

Pressure range [bar] [max]

159 bar

Pressure range [bar] [min]

-1 bar

Pressure range [psi] [max]

2305.5 psi

Pressure range [psi] [min]

-14.5 psi

Pressure reference

Sealed gauge

Quantity per packing format

20 pc

Ratiometric of Vsupply [%] [max]

90 %

Ratiometric of Vsupply [%] [min]

10 %

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Response time max. [ms]

2 ms

SCIP dossier no.

cad3914f-8db1-488c-b0ad-3a20ac1ebb41

SCIP dossier product name

DST P300

Specification key

DST P310-9736-E3BF08-0

Supply voltage [V] DC [max]

5.5 V

Supply voltage [V] DC [min]

4.5 V

UL evaluated

Yes
