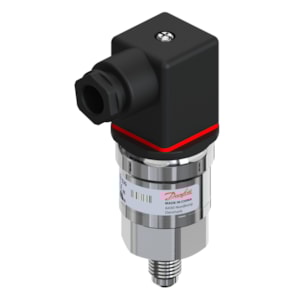

CẢM BIẾN ÁP SUẤT DANFOSS DST P310, -1 - 12 bar, -14.5 - 174 psi - C/N 076G1016

Gross weight

0.163 Kilogram

Net weight

0.15 Kilogram

Volume

0.39 Liter

EAN

5715162468517

Type

DST P310

Product group

Sensors

Product Name Description

Pressure transmitter

+ output

Pin 3

+ supply

Pin 1

- common

Pin 2

Accuracy, max. [±FS%]

1 %

Accuracy, typical [±FS%]

0.5 %

Adj. zero point and span

No

Ambient temperature range [°C] [max]

85 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

185 °F

Ambient temperature range [°F] [min]

-40 °F

Approval

ATEX; C UL US UL Recognized; CE

Approval comments

ATEX Ex ec IIA T4 Gc

Approval standard

6967179; E227388; E31024

CE evaluated

Yes

China RoHS compliance

Out of scope

Compensated temp. range [°C] [max]

120 °C

Compensated temp. range [°C] [min]

-40 °C

Compensated temp. range [°F] [max]

248 °F

Compensated temp. range [°F] [min]

-40 °F

Contains batteries

No

Electrical conn. Male/Female

Male and Female

Electrical connection

Angular connector

Electrical connection size

Pg 9

Electrical connection standard

EN 175301-803-A

Enclosure rating IP

IP65

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Fault signal level

2

Flush diaphragm

No

High Clipping Level

99

International Article Number

5715162468517

Intrinsically safe

No

Low Clipping level

4

Medium temperature range [°C] [max]

125 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

257 °F

Medium temperature range [°F] [min]

-40 °F

Output signal

Ratio metric

Overload pressure max. [bar]

33 bar

Packing format

Multi pack

Pressure connection notes

Flare 1/4 in

Pressure connection size

7/16-20

Pressure connection standard

ISO 11926-2/3

Pressure connection type

UNF

Pressure Male/Female

Male

Pressure range [bar] [max]

12 bar

Pressure range [bar] [min]

-1 bar

Pressure range [psi] [max]

174 psi

Pressure range [psi] [min]

-14.5 psi

Pressure reference

Sealed gauge

Pulse-snubber

No

Quantity per packing format

14 pc

Ratiometric of Vsupply [%] [max]

90 %

Ratiometric of Vsupply [%] [min]

10 %

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Response time max. [ms]

2 ms

SCIP dossier no.

cad3914f-8db1-488c-b0ad-3a20ac1ebb41

SCIP dossier product name

DST P300

Specification key

DST P310-DH36-A1BC08-0

Supply voltage [V] DC [max]

5.5 V

Supply voltage [V] DC [min]

4.5 V

UL evaluated

Yes
