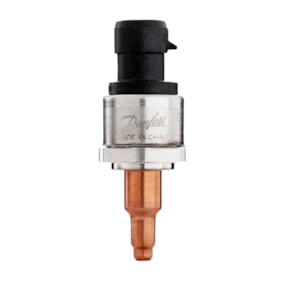

CẢM BIẾN ÁP SUẤT DANFOSS DST P110, 0 - 45 bar, 0 - 652.5 psi - C/N 075G4264

Gross weight

70 Gram

Net weight

58 Gram

EAN

5715255110859

Type

DST P110

Product group

Sensors

Product Name Description

Pressure transmitter

+ output

Pin C

+ supply

Pin B

- common

Pin A

Ambient temperature range [°C] [max]

125 °C

Ambient temperature range [°C] [min]

-40 °C

CE evaluated

Yes

China RoHS compliance

Out of scope

Compensated temp. range [°C] [max]

135 °C

Compensated temp. range [°C] [min]

-40 °C

Contains batteries

No

Electrical connection

Round Packard Metri-Pack

Electrical connection size

3 pin

Electrical connection standard

150.2 SERIES

Electrical Connector Color

Black

Enclosure rating IP

IP69K

EU RoHS compliance

Yes

EU RoHS exemption clause

No

Fault signal level

97

High Clipping Level

95

Housing material

304L

Identical product

075G1332

International Article Number

5715255110859

Low Clipping level

5

Medium temperature range [°C] [max]

135 °C

Medium temperature range [°C] [min]

-40 °C

Output signal

Ratio metric

Overload pressure max. [bar]

180 bar

Overload pressure max. [psi]

2610 psi

Packing format

Industrial pack

Pressure connection HEX [mm]

27 mm

Pressure connection size

Solder tube

Pressure connection standard

For solder tube

Pressure connection type

Solder, ODM

Pressure Male/Female

Male

Pressure range [bar] [max]

45 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

652.5 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Sealed gauge

Pulse-snubber

No

Quantity per packing format

55 pc

Ratiometric of Vsupply [%] [max]

90 %

Ratiometric of Vsupply [%] [min]

10 %

REACH Candidate List substances

No

Response time max. [ms]

2 ms

Specification key

DST P110-CE36-C2EB07-0

Supply voltage [V] DC

5 V

TEB inside CTR ±FS [%]

3 %

UL evaluated

Yes

Wetted part material

304L/316L
