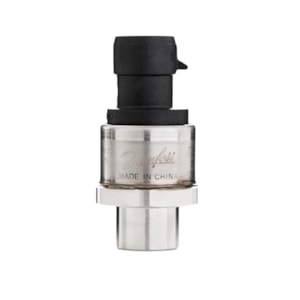

CẢM BIẾN ÁP SUẤT DANFOSS DST P110, -1 - 8 bar, -14.5 - 116 psi - C/N 075G4258

Gross weight

0.067 Kilogram

Net weight

0.062 Kilogram

Volume

0.086 Liter

EAN

5715255092988

Type

DST P110

Product group

Sensors

Product Name Description

Pressure transmitter

+ supply

Pin B

- common

Pin A

Ambient temperature range [°C] [max]

85 °C

Ambient temperature range [°C] [min]

-40 °C

CE evaluated

Yes

China RoHS compliance

Out of scope

Compensated temp. range [°C] [max]

100 °C

Compensated temp. range [°C] [min]

-40 °C

Contains batteries

No

Electrical connection

Round Packard Metri-Pack

Electrical connection size

3 pin

Electrical connection standard

150.2 SERIES

Electrical Connector Color

Black

Enclosure rating IP

IP69K

EU RoHS compliance

Yes

EU RoHS exemption clause

No

High Clipping Level

21.5

Housing material

304L

Identical product

075G1326

International Article Number

5715255092988

Low Clipping level

3.8

Medium temperature range [°C] [max]

85 °C

Medium temperature range [°C] [min]

-40 °C

Output signal

Current

Output signal [mA] [max]

20 mA

Output signal [mA] [min]

4 mA

Overload pressure max. [bar]

35 bar

Overload pressure max. [psi]

507 psi

Packing format

Industrial pack

Pressure connection HEX [mm]

27 mm

Pressure connection size

7/16-20

Pressure connection standard

SAE J513 45° flare

Pressure connection type

UNF

Pressure Male/Female

Female

Pressure range [bar] [max]

8 bar

Pressure range [bar] [min]

-1 bar

Pressure range [psi] [max]

116 psi

Pressure range [psi] [min]

-14.5 psi

Pressure reference

Sealed gauge

Pulse-snubber

No

Quantity per packing format

60 pc

REACH Candidate List substances

No

Response time max. [ms]

2 ms

Specification key

DST P110-G331-C2BF08-0

Supply voltage [V] DC [max]

28 V

Supply voltage [V] DC [min]

8 V

TEB inside CTR ±FS [%]

3 %

UL evaluated

Yes

Wetted part material

304L/316L
