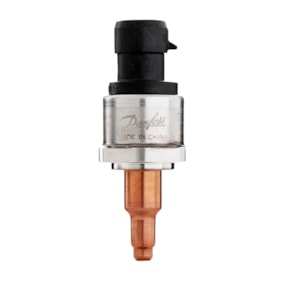

CẢM BIẾN ÁP SUẤT DANFOSS DST P110, 0 - 35 bar, 0 - 507.5 psi - C/N 075G4203

Gross weight

0.072 Kilogram

Net weight

0.058 Kilogram

Volume

0.175 Liter

EAN

5715162704820

Type

DST P110

Product group

Sensors

Product Name Description

Pressure transmitter

+ output

Pin C

+ supply

Pin B

- common

Pin A

Ambient temperature range [°C] [max]

125 °C

Ambient temperature range [°C] [min]

-40 °C

CE evaluated

Yes

China RoHS compliance

Out of scope

Compensated temp. range [°C] [max]

135 °C

Compensated temp. range [°C] [min]

-40 °C

Contains batteries

No

Electrical connection

Round Packard Metri-Pack

Electrical connection size

3 pin

Electrical connection standard

150.2 SERIES

Electrical Connector Color

black

Enclosure rating IP

IP69K

EU RoHS compliance

Yes

EU RoHS exemption clause

No

Housing material

304L

Identical product

075G1251

In scope of WEEE

Yes

International Article Number

5715162704820

Medium temperature range [°C] [max]

135 °C

Medium temperature range [°C] [min]

-40 °C

Output signal

Ratio metric

Overload pressure max. [bar]

140 bar

Overload pressure max. [psi]

2030 psi

Packing format

Industrial pack

Pressure connection HEX [mm]

27 mm

Pressure connection size

Solder tube

Pressure connection standard

For solder tube

Pressure connection type

Solder, ODM

Pressure Male/Female

Male

Pressure range [bar] [max]

35 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

507.5 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Sealed gauge

Pulse-snubber

No

Quantity per packing format

55 pc

Ratiometric of Vsupply [%] [max]

90 %

Ratiometric of Vsupply [%] [min]

10 %

REACH Candidate List substances

No

Response time max. [ms]

2 ms

Specification key

DST P110-2536-C2EB07-0

Supply voltage [V] DC

5 V

TEB inside CTR ±FS [%]

3 %

UL evaluated

Yes

Wetted part material

304L/316L
