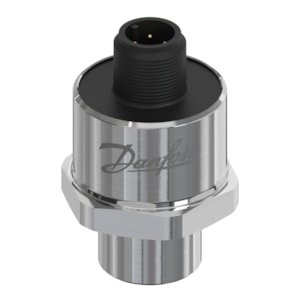

CẢM BIẾN ÁP SUẤT DANFOSS DST P110, -1 - 12 bar, -14.5 - 174 psi - C/N 075G4199

Gross weight

0.071 Kilogram

Net weight

0.058 Kilogram

EAN

5715162664261

Type

DST P110

Product group

Sensors

Product Name Description

Pressure transmitter

+ supply

Pin 1

- common

Pin 3

Ambient temperature range [°C] [max]

85 °C

Ambient temperature range [°C] [min]

-40 °C

CE evaluated

Yes

China RoHS compliance

Out of scope

Compensated temp. range [°C] [max]

100 °C

Compensated temp. range [°C] [min]

-40 °C

Contains batteries

No

Electrical connection

M12 x 1

Electrical connection size

4 pin

Electrical connection standard

IEC 61076-2-101

Electrical Connector Color

black

Enclosure rating IP

IP67

EU RoHS compliance

Yes

EU RoHS exemption clause

No

Fault signal level

0

Housing material

304L

Identical product

075G1246

In scope of WEEE

Yes

International Article Number

5715162664261

Medium temperature range [°C] [max]

100 °C

Medium temperature range [°C] [min]

-40 °C

Output signal

Current

Output signal [mA] [max]

20 mA

Output signal [mA] [min]

4 mA

Overload pressure max. [bar]

48 bar

Overload pressure max. [psi]

696 psi

Packing format

Industrial pack

Pressure connection HEX [mm]

27 mm

Pressure connection size

7/16-20

Pressure connection standard

SAE J513 45° flare

Pressure connection type

UNF

Pressure Male/Female

Female

Pressure range [bar] [max]

12 bar

Pressure range [bar] [min]

-1 bar

Pressure range [psi] [max]

174 psi

Pressure range [psi] [min]

-14.5 psi

Pressure reference

Sealed gauge

Pulse-snubber

No

Quantity per packing format

60 pc

REACH Candidate List substances

No

Response time max. [ms]

2 ms

Specification key

DST P110-DH31-A5BF08-0 I/60

Supply voltage [V] DC [max]

28 V

Supply voltage [V] DC [min]

8 V

TEB inside CTR ±FS [%]

2.5 %

UL evaluated

Yes

Wetted part material

304L/316L
