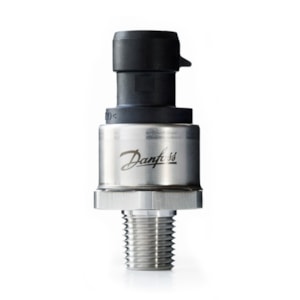

CẢM BIẾN ÁP SUẤT DANFOSS DST P110, -1 - 49 bar, -14.5 - 710.5 psi - C/N 075G4161

Gross weight

0.067 Kilogram

Net weight

0.055 Kilogram

Volume

0.165 Liter

EAN

5715162460450

Type

DST P110

Product group

Sensors

Product Name Description

Pressure transmitter

+ supply

Pin B

- common

Pin A

Ambient temperature range [°C] [max]

85 °C

Ambient temperature range [°C] [min]

-40 °C

CE evaluated

Yes

China RoHS compliance

Out of scope

Compensated temp. range [°C] [max]

100 °C

Compensated temp. range [°C] [min]

-40 °C

Contains batteries

No

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical connection

Round Packard Metri-Pack

Electrical connection size

3 pin

Electrical connection standard

150.2 SERIES

Electrical Connector Color

black

Enclosure rating IP

6769K

EU RoHS compliance

Yes

EU RoHS exemption clause

No

Housing material

304L

Identical product

075G1202

In scope of WEEE

Yes

International Article Number

5715162460450

Medium temperature range [°C] [max]

100 °C

Medium temperature range [°C] [min]

-40 °C

Output signal

Current

Output signal [mA] [max]

20 mA

Output signal [mA] [min]

4 mA

Overload pressure max. [bar]

200 bar

Overload pressure max. [psi]

2900 psi

Packing format

Industrial pack

Pressure connection HEX [mm]

27 mm

Pressure connection size

1/4-18

Pressure connection standard

ANSI B1.20.1

Pressure connection type

NPT

Pressure Male/Female

Male

Pressure range [bar] [max]

49 bar

Pressure range [bar] [min]

-1 bar

Pressure range [psi] [max]

710.5 psi

Pressure range [psi] [min]

-14.5 psi

Pressure reference

Sealed gauge

Pulse-snubber

No

Quantity per packing format

60 pc

REACH Candidate List substances

No

Response time max. [ms]

2 ms

Specification key

DST P110-T136-C2AC04-0

Supply voltage [V] DC [max]

28 V

Supply voltage [V] DC [min]

8 V

TEB inside CTR ±FS [%]

2.5 %

UL evaluated

Yes

Wetted part material

304L/316L
